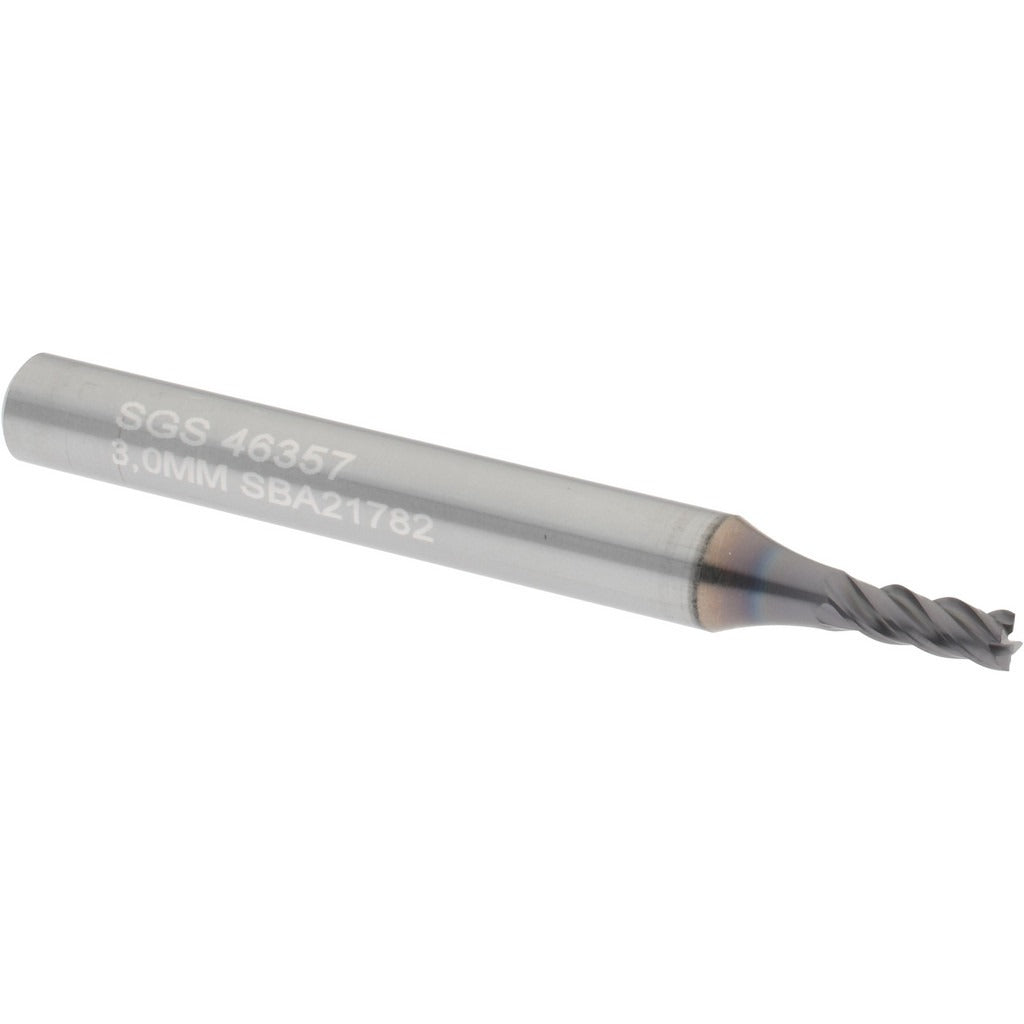

Sgs 46357 Square End Mill 4 Flute Solid Carbide Altin

Product Description

The SGS 46357 is a solid carbide square end mill designed for high-performance milling in demanding shop environments. Built on the Z1M series platform, it features a 0.1181-inch (3.00 mm) cutting diameter and a 0.315-inch (8.00 mm) length of cut. The AlTiN coating provides heat and oxidation resistance during high-speed cutting operations. A variable helix and variable index geometry reduce harmonic vibration, improving surface finish and tool life in difficult materials. This tool is intended for use by machinists and CNC operators in production and job shop settings.

The SGS 46357 is suited for milling operations across a broad range of workpiece materials, including hardened steels, cast irons, stainless steels, carbon steels, and superalloys, corresponding to material codes H, K, M, P, and S. The spiral flute design and right-hand cut with right-hand flute configuration make it appropriate for conventional CNC vertical and horizontal machining center applications. The straight cylindrical shank fits standard collet and end mill holder tooling systems.

Key Features

• 0.1181-inch (3.00 mm) cutting diameter in Z1M series micrograin solid carbide
• AlTiN coating for elevated-temperature and wear resistance
• Variable helix and variable index geometry to reduce chatter and vibration
• 4-flute spiral configuration for balanced chip evacuation and surface finish
• Right-hand cut, right-hand flute with straight cylindrical shank
• Non-center-cutting design — not intended for plunge entry without a pre-drilled hole

Compatibility

Designed for use in standard CNC machining centers with collet chucks or end mill holders accepting a 6.00 mm (0.2362-inch) straight cylindrical shank. Rated for workpiece material codes H, K, M, P, and S as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator following the machine tool manufacturer's toolholding specifications. Ensure the spindle is fully stopped and the machine is in an e-stop or powered-down state before changing tooling. Verify runout at the shank after seating in the holder, as runout directly affects tool life and part accuracy with small-diameter end mills. This tool is not center-cutting and must not be used for direct plunge operations without a pre-drilled or pre-milled entry point.
