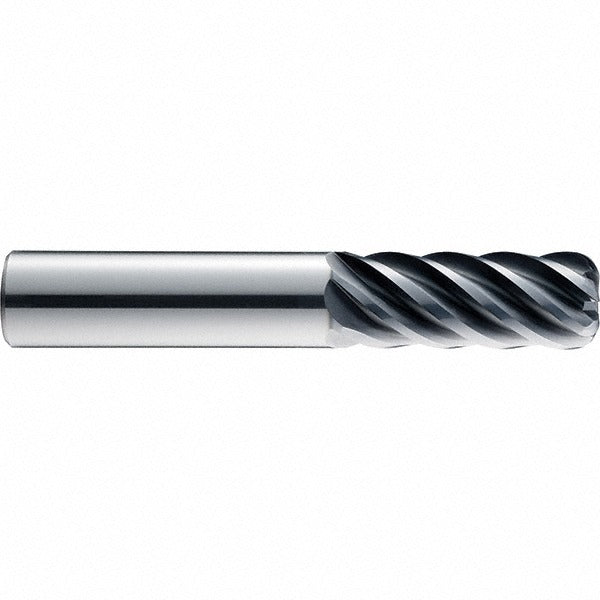

Sgs 45186 Corner Radius End Mill 20mm 6 Flute Carbide

Product Description

The SGS 45186 is a solid carbide corner radius end mill engineered for finishing operations in demanding machining environments. It features a 20 mm cutting diameter, a 38 mm length of cut, and a 5.00 mm (0.1969 inch) corner radius that helps reduce stress concentrations and improve surface finish at part corners. With 6 helical flutes and a high helix angle of 41 degrees, the tool promotes efficient chip evacuation and smooth cutting action. A TiN coating increases surface hardness and wear resistance. The straight-cylindrical shank measures 20 mm in diameter and is designed for use with standard end mill holders. Overall length is 104 mm.

This end mill is suited for finishing cuts on steel, stainless steel, cast iron, superalloys, and titanium, as well as secondary use on hard materials. The close pitch and variable index flute design help reduce chatter during finishing passes in these demanding workpiece materials. The short length type keeps the tool rigid in applications where deflection must be minimized. It is a single-end, right-hand cutting, right-hand flute tool from the SGS Series 51CR family.

Key Features

• 20 mm cutting diameter with 5.00 mm corner radius (0.1969 inches) for reduced stress at part corners
• 6 helical flutes with variable index and 41-degree high helix for smooth chip flow
• Solid carbide construction for rigidity and wear resistance in hard and abrasive materials
• TiN coating adds surface hardness and extends tool life in steel and stainless steel
• Close pitch, short length design supports chatter-free finishing passes
• Right-hand cut and flute orientation; compatible with standard end mill holders

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium. Secondary workpiece material is hard material. Part of the SGS Series 51CR.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the machine powered off and all motion fully stopped. Seat the straight-cylindrical shank fully in a clean, properly sized end mill holder and torque the retention mechanism per the holder manufacturer's specification. Verify runout after clamping before initiating a cut. This tool is not center-cutting and should not be used for plunge entry.
