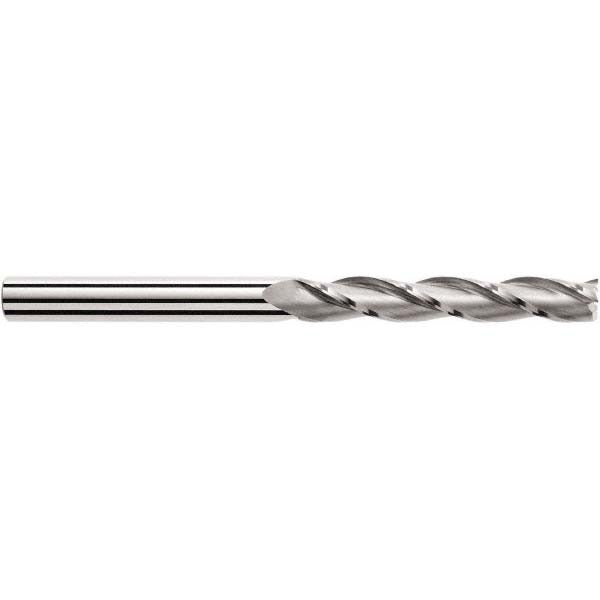

Sgs 43503 Square End Mill 0.1575 in 3 Flute Solid Carbide

Product Description

The SGS 43503 is a solid carbide square end mill designed for precision milling in demanding metalworking and machining applications. Built to Series 5XLM specifications, this extra-long tool features a 0.1575-inch cutting diameter, a 0.9843-inch length of cut, and a 3-flute spiral geometry with a 30-degree helix angle. The micrograin carbide construction provides the hardness and wear resistance needed for tight-tolerance work in harder materials. Right-hand cut and right-hand flute direction are standard on this configuration. Center-cutting capability allows for direct plunging as well as conventional peripheral milling operations.

This end mill is suited for slot milling, profile milling, and deep-reach finishing passes in ferrous and non-ferrous materials where a longer reach is required. The extra-long length of cut makes it practical for machining deep pockets, thin-wall features, and features that standard-length end mills cannot reach. It is installed by machinists and CNC operators working in job shops, production facilities, and toolroom environments.

Key Features

• 0.1575-inch cutting diameter with matching 0.1575-inch shank diameter for direct collet clamping
• 0.9843-inch length of cut for deep pocket and extended-reach applications
• 3-flute spiral geometry with 30-degree helix angle for efficient chip evacuation
• Micrograin solid carbide construction for durability in hard and abrasive materials
• Center-cutting design allows both plunge and peripheral milling
• Bright/uncoated finish; right-hand cut and right-hand flute direction

Compatibility

Designed as an OEM-style solid carbide square end mill replacement suitable for CNC machining centers and manual mills accepting a 0.1575-inch shank diameter collet or end mill holder.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Secure the shank fully within the collet or tool holder to the recommended engagement depth before tightening. Confirm spindle runout is within acceptable tolerance before beginning a cut, as excessive runout will accelerate wear on small-diameter carbide tooling. Always verify feed rate, speed, and depth-of-cut parameters against the material being machined before starting the operation.
