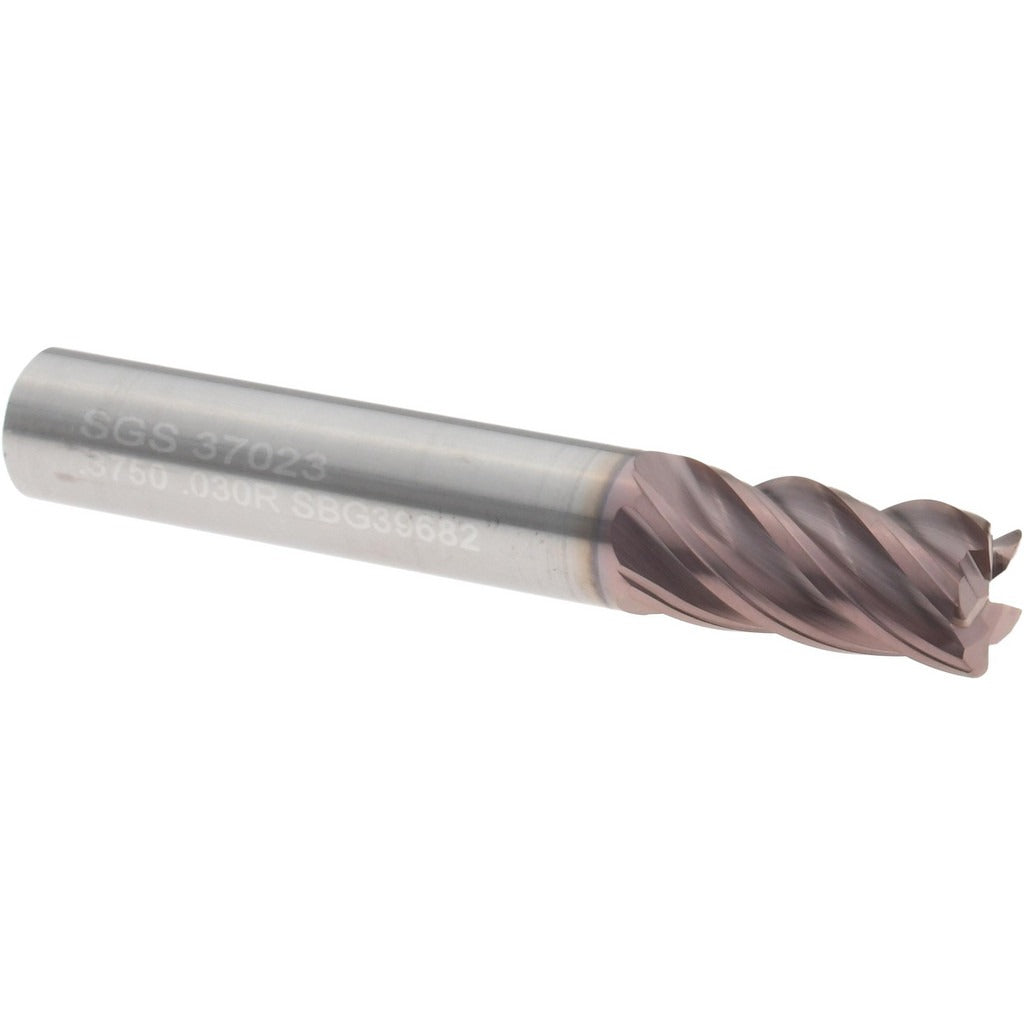

Sgs 37023 Roughing End Mill 3/8 in 5 Flute Tin Solid Carbide

Product Description

The SGS 37023 is a solid carbide roughing end mill designed for aggressive material removal in milling applications. It features a 3/8 inch diameter, 5 variable-pitch flutes, and a 0.03 inch corner radius that reduces chipping and extends tool life on entry and exit cuts. The TiN (titanium nitride) coating increases surface hardness and heat resistance. Coolant-through capability supports chip evacuation in deep-slot and high-feed operations. This single-end tool cuts in the right-hand direction with a right-hand spiral flute geometry and a 37-degree maximum helix angle. It is installed by machinists and CNC operators working in job shops, manufacturing facilities, and tool rooms.

This end mill is suited for roughing passes on ferrous and non-ferrous metals where cycle time reduction and chip clearance are priorities. The variable pitch flute spacing helps dampen harmonics and reduce chatter at higher feed rates. With a 3/4 inch length of cut and 2.5 inch overall length, it fits standard toolholders for light to medium CNC machining centers and manual mills. The straight-cylindrical shank with h6 tolerance provides consistent gripping in collet chucks and end mill holders. It is not center-cutting, so plunge entry is not recommended without a pilot hole or ramp entry path.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• TiN coating increases surface hardness and reduces heat buildup at the cutting edge
• Variable-pitch 5-flute design dampens chatter and supports higher feed rates
• Coolant-through design aids chip evacuation in slotting and deep-pocket operations
• 0.03 inch corner radius reduces stress concentration at the tool tip
• Right-hand cut, right-hand spiral, 37-degree maximum helix angle for efficient chip flow

Compatibility

Designed as an OEM-style solid carbide roughing end mill for use in standard collet chucks and end mill holders accepting a 3/8 inch straight-cylindrical shank with h6 tolerance.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully in the collet or holder to the recommended engagement depth and torque the retention mechanism per the toolholder manufacturer specification. Because this tool is not center-cutting, avoid direct plunge entry into solid material.
