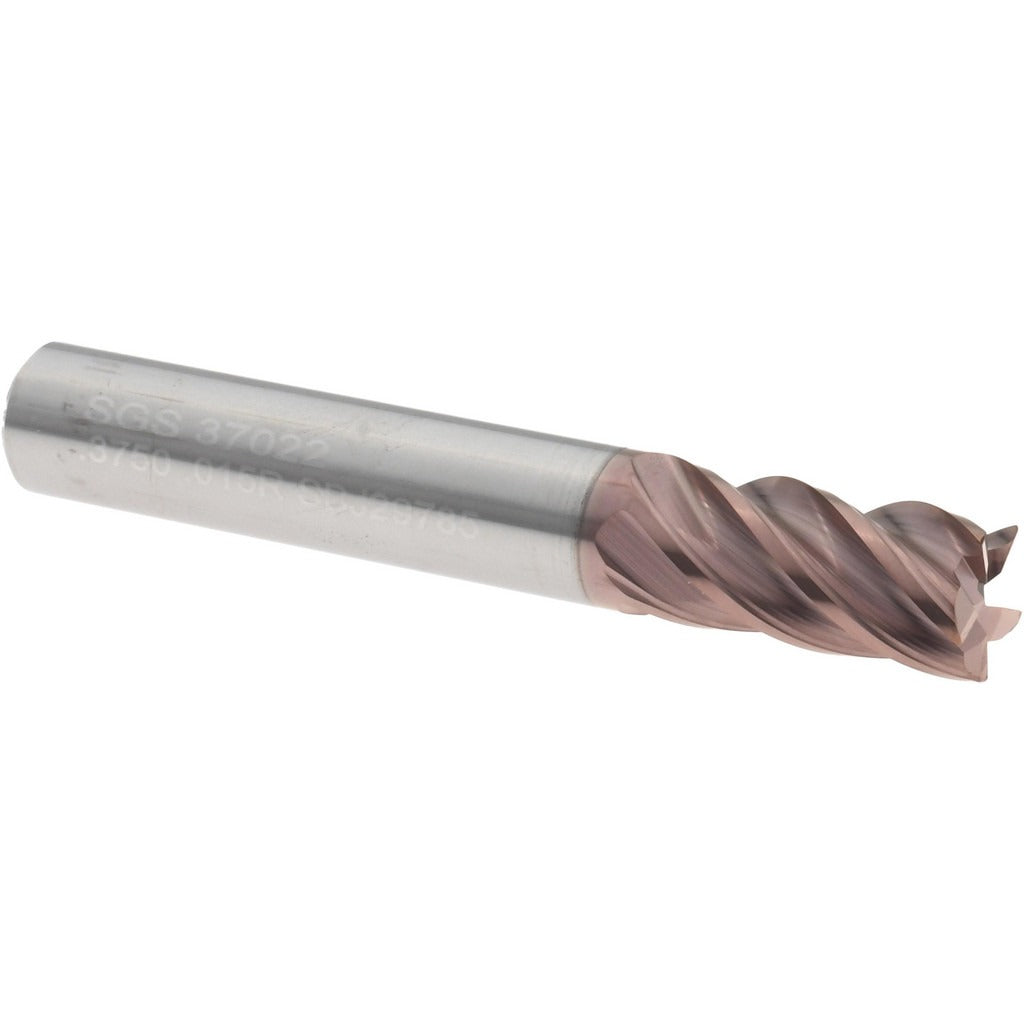

Sgs 37022 Roughing End Mill 3/8 in 5 Flute Tin Solid Carbide

Product Description

The SGS 37022 is a solid carbide roughing end mill designed for aggressive material removal in milling operations. It features a 3/8 inch diameter, 5-flute variable-pitch geometry, and a 0.015 inch corner radius that reduces chipping and extends tool life in interrupted cuts. The TiN coating improves surface hardness and wear resistance. With a 3/4 inch length of cut and 2-1/2 inch overall length, this tool is suited for light-to-medium roughing passes in vertical machining centers and CNC knee mills. Installation and operation are performed by machinists and CNC operators working in production or job-shop environments.

The SGS 37022 is intended for roughing applications in ferrous and non-ferrous materials where a variable-pitch flute design is required to reduce chatter and vibration. The right-hand cutting and right-hand spiral flute direction are standard for conventional CNC milling setups. Coolant-through capability supports chip evacuation and thermal management during extended cutting cycles. This is a single-end tool with a straight cylindrical shank sized at 3/8 inch, compatible with standard ER and side-lock toolholders used in most CNC milling machines.

Key Features

• Solid carbide construction for rigidity and wear resistance in roughing operations
• 5-flute variable-pitch design reduces harmonic chatter during aggressive cuts
• TiN coating improves surface hardness and extends tool life
• Coolant-through design supports chip evacuation and heat control
• 0.015 inch corner radius reduces edge chipping on entry and exit
• Maximum helix angle of 37 degrees suits a wide range of workpiece materials

Compatibility

Designed as an OEM-style replacement and standard cutting tool for CNC milling applications requiring a 3/8 inch straight-shank roughing end mill with ER or side-lock toolholder compatibility.

Installation Notes

Installation is performed by a machinist or CNC operator. Secure the tool in a clean, properly sized collet or toolholder and verify runout before beginning a cutting cycle. Power down the spindle and confirm the machine is in an e-stop or lockout state before changing tooling. Do not exceed the manufacturer-rated depth of cut or feed rate for the workpiece material being machined.
