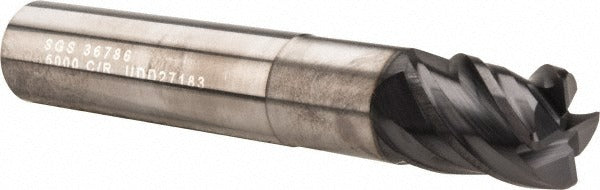

Sgs 36786 Corner Radius End Mill 1/2 in 4 Flute Carbide

Product Description

The SGS 36786 is a solid carbide corner radius end mill designed for high-performance material removal in demanding machining applications. Built on the ZD1C series platform, this single-end tool features a 1/2-inch cutting diameter, a 5/8-inch length of cut, and a 0.04-inch corner radius that reduces stress concentration at the cutting edge and extends tool life in interrupted cuts. The AlTiN (TX) coating provides thermal resistance and hardness retention at elevated cutting temperatures. With variable index and variable helix geometry, the tool actively suppresses chatter and improves surface finish during both roughing and finishing passes. Overall length is 3 inches with a 1/2-inch straight cylindrical shank.

This end mill is suited for machining cast iron, hard materials, and steel in CNC milling centers using standard end mill toolholders. The extended reach design, with a 1.26-inch reach length and 0.485-inch neck diameter, allows access to features requiring clearance below the shank diameter. The right-hand flute direction and right-hand cutting orientation are standard for conventional CNC spindle setups. It is appropriate for short-reach roughing and finishing operations where chatter control and edge durability are priorities.

Key Features

• Solid carbide construction for rigidity and wear resistance in ferrous and hard materials
• AlTiN (TX) coating for high-temperature performance and extended tool life
• Variable index and variable helix geometry actively reduce chatter
• 0.04-inch corner radius reduces edge chipping and stress concentration
• Extended reach with 0.485-inch neck diameter for clearance in deep-feature applications
• Suited for both roughing and finishing in a single tool

Compatibility

Designed for use with standard end mill toolholders. Primary workpiece materials are cast iron and hard materials; secondary workpiece material is steel. Part of the SGS ZD1C series.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the toolholder is clean and properly torqued before operation, and verify runout with a dial indicator before taking a first cut. Consult the machine tool manufacturer and SGS cutting data recommendations for appropriate speeds and feeds for the specific workpiece material. Do not use this tool in coolant-through toolholders, as this configuration does not support internal coolant delivery.
