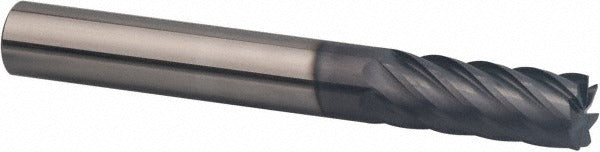

Sgs 36622 Square End Mill 3/8 in 7 Flute Altin Solid Carbide

Product Description

The SGS 36622 is a 7-flute solid carbide square end mill designed for high-performance milling in demanding material categories. Built to Series 66 specifications, it carries an AlTiN finish that extends tool life under elevated cutting temperatures. The 3/8 inch cutting diameter pairs with a 1 inch length of cut and a 3 inch overall length, making it a compact, rigid tool suited for finishing and semi-finishing passes. The micrograin carbide substrate supports edge retention in harder workpiece materials. Right-hand cut and right-hand spiral flute geometry, combined with a 35-degree helix angle, promote chip evacuation and reduce deflection. Centercutting capability allows plunge entry without a pre-drilled pilot hole.

The SGS 36622 is applied in CNC milling operations across a range of workpiece materials, including hardened steels, cast irons, stainless steels, carbon steels, and superalloys, corresponding to ISO material codes H, K, M, P, and S. The straight cylindrical shank fits standard collet chucks and end mill holders with a 3/8 inch bore. It is suited for vertical and horizontal machining centers running finish contouring, slotting, and profiling operations where surface finish and dimensional accuracy are priorities.

Key Features

• 7-flute geometry increases radial contact and improves surface finish at moderate chip loads
• AlTiN coating provides oxidation resistance and hardness at elevated cutting temperatures
• 35-degree helix angle promotes efficient chip evacuation and smooth cutting action
• Micrograin solid carbide substrate delivers edge retention in difficult-to-machine alloys
• Centercutting design allows direct plunge milling without pre-drilling
• Right-hand cut and right-hand flute configuration compatible with standard CNC spindle rotation

Compatibility

Designed for use in standard 3/8 inch collet chucks and end mill holders on CNC vertical and horizontal machining centers. Suitable for workpiece materials in ISO categories H, K, M, P, and S as specified by the manufacturer.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Confirm spindle and tool holder are clean and free of runout before seating the shank. Apply the appropriate torque to the collet nut per the toolholder manufacturer specification. Always verify spindle direction and programmed feed and speed parameters before initiating a cut.
