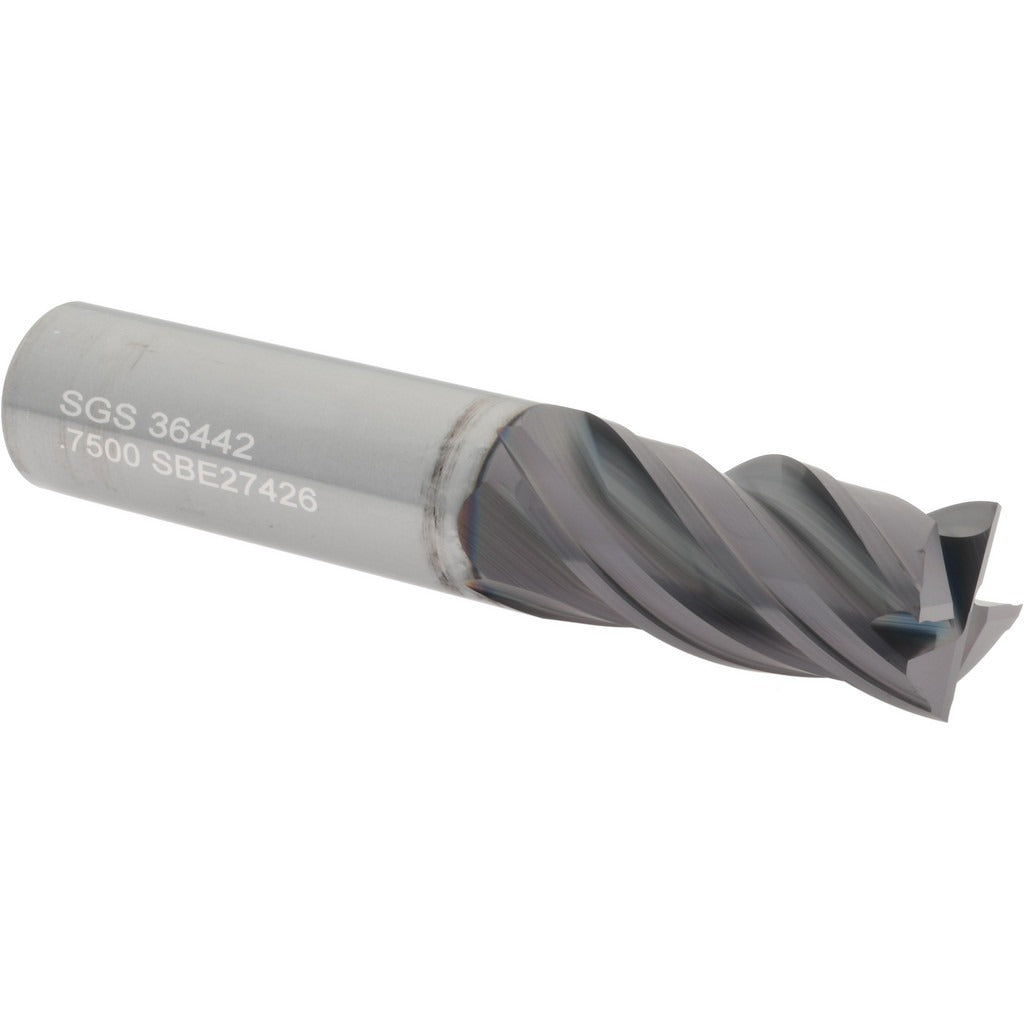

Sgs 36442 Square End Mill 3/4 Inch 4 Flute Solid Carbide

Product Description

The SGS 36442 is a solid carbide square end mill designed for high-performance metal removal in demanding machining applications. It features a 3/4 inch cutting diameter, a 1-1/2 inch length of cut, and a 4 inch overall length with a straight-cylindrical 3/4 inch shank. The AlTiN coating provides heat resistance and extended tool life in dry or high-speed cutting conditions. The variable helix and variable index geometry reduce harmonics and chatter, making it well suited for aggressive material removal and finishing passes in difficult-to-machine alloys.

This end mill is built for use in CNC machining centers and manual mills where tight tolerances and surface finish quality are priorities. Primary workpiece material codes H, K, M, P, and S indicate suitability for hardened steels, cast iron, stainless steel, carbon and alloy steels, and high-temperature superalloys. The Series Z1 designation places it in SGS Tool Company's high-performance milling line. It is a single-end, non-centercutting tool and is not recommended for plunge cutting without a pilot hole or ramping entry strategy.

Key Features

• Variable helix and variable index flute geometry reduces chatter and vibration during cutting
• AlTiN coating improves heat resistance and extends tool life in ferrous and superalloy materials
• Micrograin solid carbide construction provides rigidity and edge retention
• Right-hand cut, right-hand spiral flute configuration for standard milling operations
• Mill diameter tolerance of +0.0000 / -0.0020 inches for consistent fit and finish
• Shank diameter tolerance of +0.00000 / -0.00051 inches for secure collet or end mill holder engagement

Compatibility

Rated for primary workpiece material codes H, K, M, P, and S, covering hardened steels, cast iron, stainless steel, carbon and alloy steels, and high-temperature superalloys. Compatible with standard 3/4 inch collets, ER collet chucks, and end mill holders. This is a regular-length tool in the SGS Z1 series.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Secure the shank in a clean, properly sized collet or end mill holder and torque to the toolholder manufacturer's specification. Inspect the shank and collet bore for chips or damage before mounting. This tool is not centercutting — use a ramping, helical, or pre-drilled entry strategy rather than direct plunge cuts.
