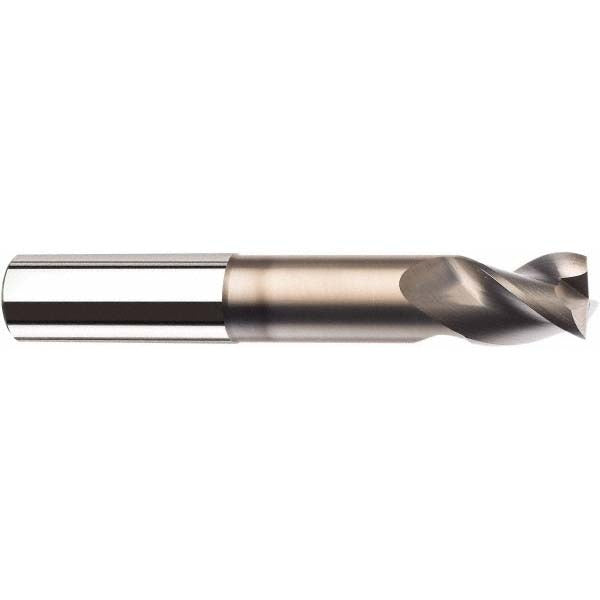

Sgs 35616 Corner Radius End Mill 1/2 in 3 Flute Carbide

Product Description

The SGS 35616 is a solid carbide corner radius end mill designed for precision material removal in non-ferrous metal applications. Built to Series 43CR specifications, it features a 1/2 inch mill diameter, 2 inch length of cut, and a 0.01 inch corner radius that reduces stress concentration at the cutting edge and extends tool life compared to sharp-corner geometry. With 3 right-hand helical flutes and a coarse pitch, it is optimized for efficient chip evacuation in aluminum, copper, brass, and similar non-ferrous materials. Licensed machinists and CNC programmers running production or job-shop work are the primary users of this tool.

This end mill is intended for single-end use in non-ferrous metal machining applications. The long-length configuration, with a 4 inch overall length and 1.75 inch decimal length of cut, provides extended reach for deeper pocketing, slotting, and profiling operations where a standard-length tool cannot access the workpiece geometry. It seats into standard end mill holders with a straight cylindrical 1/2 inch shank and is suited for both manual and CNC milling machine setups.

Key Features

• Solid carbide construction provides rigidity and wear resistance for non-ferrous metal cutting
• 0.01 inch corner radius reduces edge chipping and extends tool life versus a square end geometry
• 3 right-hand helical flutes with coarse pitch for aggressive chip evacuation
• Long-length design with 4 inch OAL for extended reach in deep pocketing and slotting
• Uncoated bright finish - optimized for non-ferrous materials where coating is not required
• Straight cylindrical 1/2 inch shank fits standard end mill holders

Compatibility

Designed for use with standard end mill holders accepting a 1/2 inch straight cylindrical shank. Primary workpiece material classification is non-ferrous metal (Material Code N), including aluminum, brass, copper, and similar alloys.

Installation Notes

Installation and tool changes should be performed with the machine in a de-energized, locked-out state per applicable machine safety procedures. Seat the shank fully into the end mill holder and torque the set screw or collet nut to the holder manufacturer's specification. Inspect the corner radius and cutting edges for chips or damage before each use. Right-hand cutting direction requires conventional spindle rotation; confirm spindle direction before engaging the cut.
