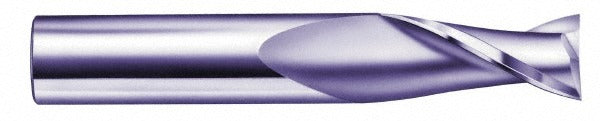

Sgs 35297 Square End Mill 1 in 2 Flute Solid Carbide

Product Description

The SGS 35297 is a solid carbide square end mill designed for precision milling operations in non-ferrous metals and similar materials. With a 1 inch cutting diameter, 1.5 inch length of cut, and 4 inch overall length, this tool delivers consistent performance in standard roughing and finishing applications. The 2-flute geometry and 30-degree helix angle promote efficient chip evacuation in softer workpiece materials. The centercutting design allows for direct plunge entry without a pre-drilled hole. This end mill belongs to SGS Series 52 and ships in an uncoated, spiral flute configuration with a right-hand cut and right-hand flute direction. Machinists and tooling professionals install this tool in CNC machining centers and manual mills.

The SGS 35297 is suited for milling non-ferrous metals including aluminum, brass, copper, and similar N-group materials. The regular length configuration and straight-cylindrical shank make it compatible with standard collet chucks and end mill holders accepting a 1 inch shank. The 2-flute design provides ample chip clearance in gummy or sticky materials where flute loading is a concern. This tool is appropriate for slotting, profiling, and plunge operations in production and job-shop environments.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• 2-flute spiral geometry with 30-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge milling without pre-drilling
• Right-hand cut and right-hand flute direction for standard spindle use
• Straight-cylindrical shank compatible with standard 1 inch collet and end mill holders
• Uncoated finish suited for non-ferrous and softer workpiece materials

Compatibility

Designed as an OEM-style replacement or direct-fit tooling option for machining setups requiring a 1 inch diameter, 2-flute solid carbide square end mill with a 1 inch straight-cylindrical shank. Compatible with standard ER, DA, and end mill holder tooling systems accepting a 1 inch shank diameter.

Installation Notes

Installation is performed by machinists or tooling technicians on CNC or manual milling equipment. Ensure the spindle is fully stopped and the machine is placed in an e-stop or lockout-tagout state before changing tooling. Verify the collet or end mill holder bore matches the 1 inch shank diameter and that the tool is drawn up to the minimum recommended insertion depth per the holder manufacturer's guidelines. Do not exceed the tool's rated cutting parameters for the workpiece material.
