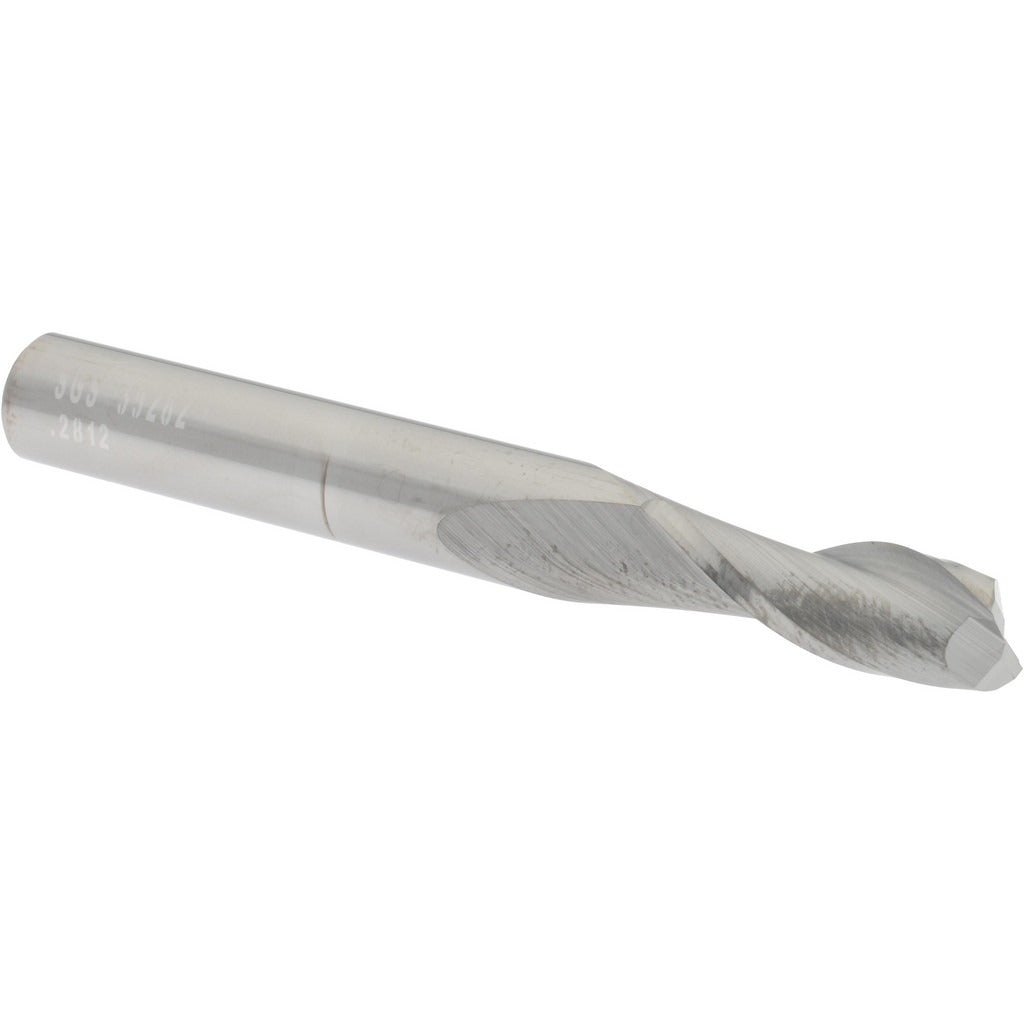

Sgs 35282 Square End Mill 9/32 in 2 Flute Solid Carbide

Product Description

The SGS 35282 is a solid carbide square end mill designed for precision milling of non-ferrous metals and similar materials. With a 9/32 inch (0.2813 inch) cutting diameter and a 3/4 inch length of cut, it delivers clean, square-shoulder cuts in a compact form factor. The two-flute, right-hand spiral configuration with a 30-degree helix angle promotes efficient chip evacuation and smooth cutting action. Built from micrograin carbide, this single-end mill handles demanding material removal while maintaining dimensional accuracy. It is center-cutting, allowing plunge entry directly into workpiece material without pre-drilling.

The SGS 35282 is suited for milling operations on non-ferrous metals such as aluminum, brass, copper, and similar materials. Its regular-length geometry and 5/16 inch straight-cylindrical shank make it compatible with standard collet chucks and end mill holders on CNC machining centers and manual mills alike. The bright, uncoated finish is appropriate for non-ferrous applications where coating is unnecessary and can interfere with chip flow or surface finish. This tool is commonly used in job shops, production facilities, and maintenance machining environments.

Key Features

• Solid micrograin carbide construction for wear resistance and dimensional stability
• 2-flute, right-hand cut and right-hand flute spiral for efficient chip evacuation
• 30-degree helix angle optimized for non-ferrous material removal
• Center-cutting design allows direct plunge entry without pilot hole
• Bright/uncoated finish suited for aluminum and other non-ferrous metals
• 5/16 inch straight-cylindrical shank fits standard collets and end mill holders

Compatibility

Designed for use with non-ferrous metals (primary workpiece material code N). Fits standard collet chucks and end mill holders accepting a 5/16 inch straight-cylindrical shank. Part of SGS Series 52 regular-length end mills.

Installation Notes

Installation and setup should be performed by a qualified machinist familiar with rotating cutting tool safety. Ensure the machine spindle is fully stopped and locked out before inserting or removing the end mill from the tool holder. Verify collet or holder bore size matches the 5/16 inch shank diameter and that runout is within acceptable tolerance before cutting. Follow the machine manufacturer and tooling guidelines for appropriate feed rates and speeds when cutting non-ferrous materials.
