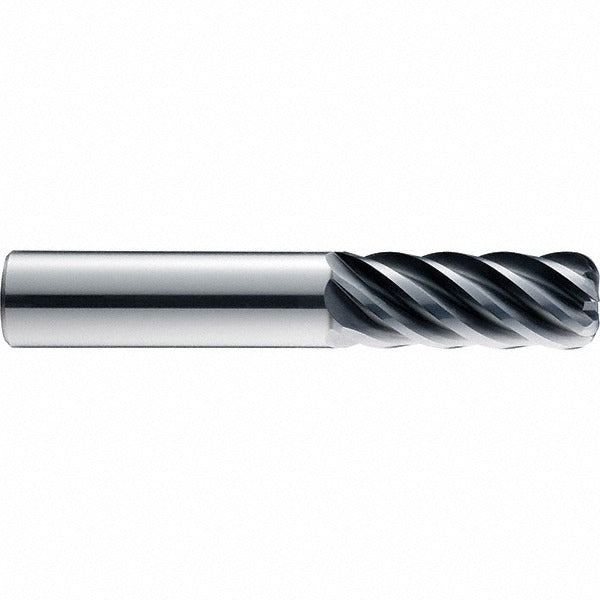

Sgs 35182 Corner Radius End Mill 6 Flute Solid Carbide

Product Description

The SGS 35182 is a solid carbide corner radius end mill designed for high-performance finishing operations in demanding machining environments. Built to Series 51CR specifications, this single-end tool features a 0.5 inch mill diameter, six flutes, and a 0.06 inch corner radius that reduces edge chipping and extends tool life on difficult materials. The TiN coating improves surface hardness and wear resistance. With a high helix geometry and variable index, it minimizes vibration and improves chip evacuation, making it a reliable choice for machinists working on steel, stainless steel, cast iron, superalloys, and titanium in production or tool-room settings.

This end mill is suited for finishing cuts on a range of ferrous and hard workpiece materials, including steel, stainless steel, cast iron, superalloys, titanium, and hard materials. Its extended reach of 2.25 inches makes it effective in deep-pocket and contoured-wall applications where standard-reach tools cannot access the feature. It mounts in standard end mill holders with a straight-cylindrical shank. Right-hand cutting direction and right-hand flute direction follow conventional milling machine setups in both CNC and manual applications.

Key Features

• Solid carbide construction for rigidity and heat resistance in high-speed finishing
• 0.06 inch corner radius reduces stress concentration and prevents corner chipping
• Six-flute, close-pitch design maximizes material removal rate during finishing passes
• Variable index reduces harmonic vibration for improved surface finish
• TiN coating enhances wear resistance across steel and hard material applications
• Extended reach of 2.25 inches supports deep-pocket and contoured-surface work

Compatibility

Designed for use with standard end mill holders. Primary workpiece materials include steel, stainless steel, cast iron, superalloys, and titanium. Secondary workpiece material category is hard material.

Installation Notes

Installation should be performed by a qualified machinist. Secure the shank fully into the end mill holder and verify runout before cutting. Confirm spindle speed and feed rate are appropriate for the workpiece material and cut depth before engaging the tool. Do not exceed the tool's rated length of cut of 0.625 inches to avoid deflection or breakage.
