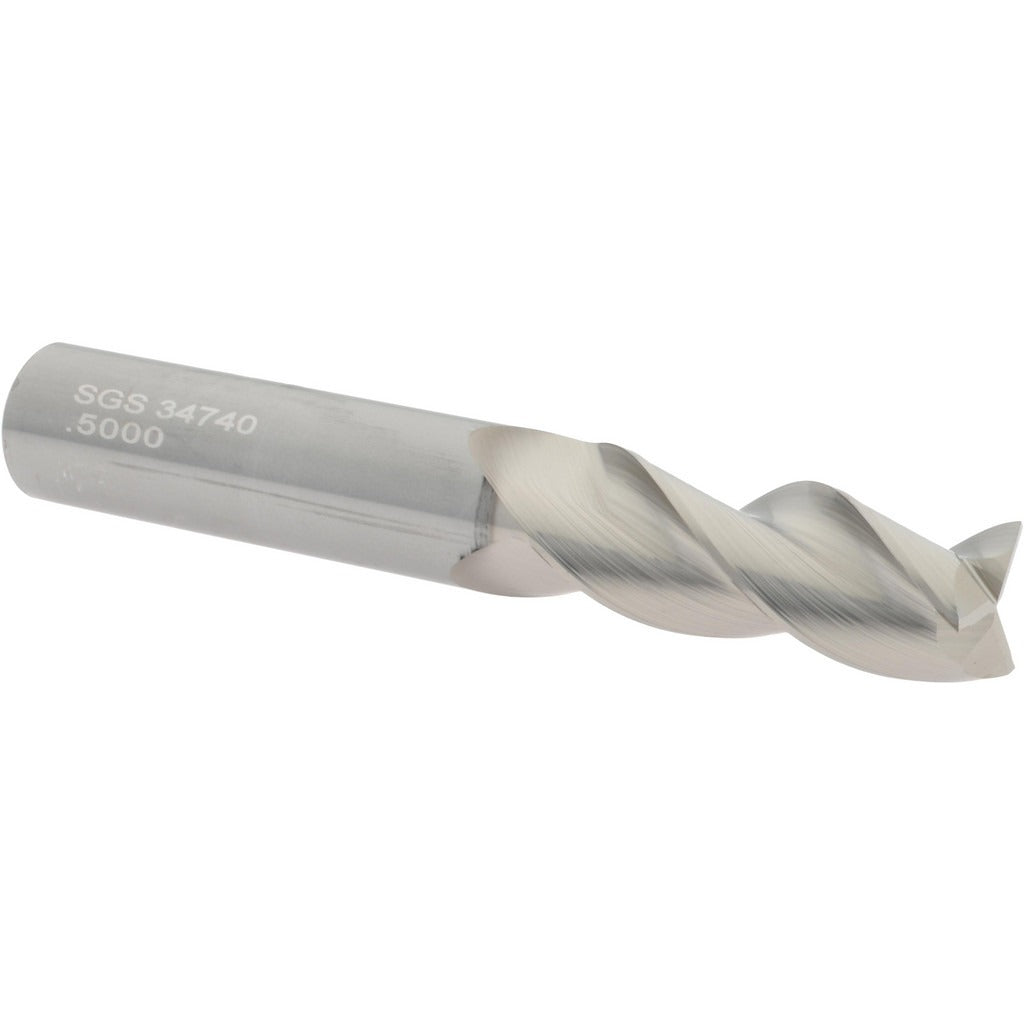

Sgs 34740 Square End Mill 0.5 in 3 Flute Solid Carbide Tib2

Product Description

The SGS 34740 is a solid carbide square end mill designed for precision milling of non-ferrous metals. It features a 0.5 inch cutting diameter, a 1.25 inch length of cut, and a 3.25 inch overall length, making it a regular-length tool suited for standard milling operations. The three-flute geometry and 38-degree helix angle promote efficient chip evacuation and smooth cutting action. A titanium diboride (TiB2) finish improves surface hardness and reduces built-up edge on non-ferrous workpiece materials. This tool is intended for use by machinists and CNC operators working in production or job-shop environments.

The SGS 34740 is intended primarily for milling non-ferrous metals such as aluminum, brass, copper, and similar materials. The right-hand cut, right-hand spiral flute configuration is the standard orientation for conventional and climb milling on vertical and horizontal machining centers. With a straight cylindrical shank of 0.5 inches and tight diameter tolerances, it seats securely in standard end mill holders, collet chucks, and shrink-fit toolholders. This tool is not center-cutting and is not designed for plunge operations.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• TiB2 coating reduces friction and built-up edge on aluminum and other non-ferrous materials
• Three-flute design balances chip clearance with tool strength at 0.5 inch diameter
• 38-degree helix angle promotes smooth cutting action and efficient chip flow
• Right-hand cut, right-hand spiral flute - standard orientation for CNC machining centers
• Tight diameter tolerance of +0.00000 / -0.00043 inches on both cutting and shank diameters

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide square end mill for standard 0.5 inch end mill holders, ER collet chucks, and shrink-fit toolholding systems used on CNC vertical and horizontal machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Ensure the machine spindle is fully stopped and the tool is secured to the specified runout tolerance of the toolholder before operation. Use the appropriate collet or holder rated for a 0.5 inch straight cylindrical shank. This tool is not center-cutting - do not program plunge cuts; ramp or helical entry moves are required when entering a closed pocket.
