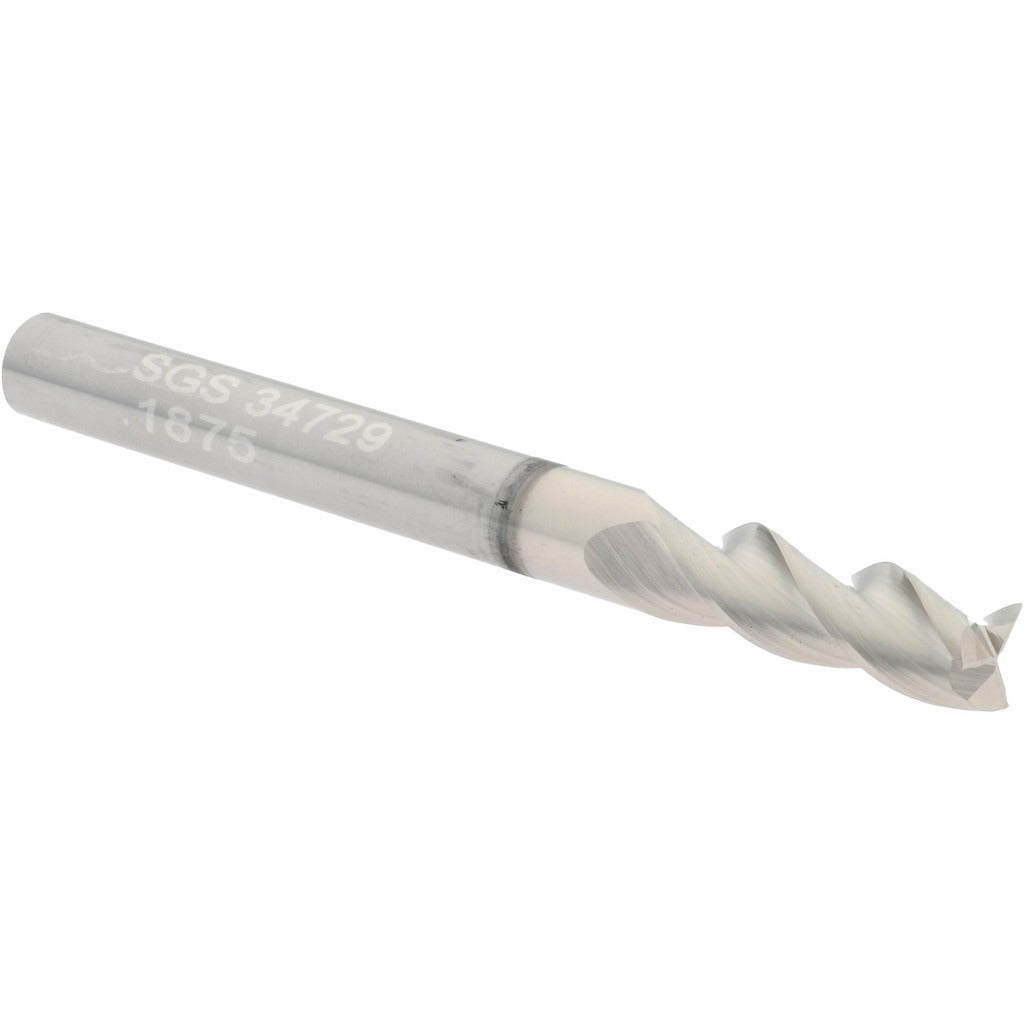

Sgs 34729 Square End Mill 3/16 in 3 Flute Solid Carbide

Product Description

The SGS 34729 is a solid carbide square end mill designed for precision milling of non-ferrous metals. It features a 3/16 inch (0.1875 inch) cutting diameter with a 9/16 inch (0.5625 inch) length of cut and a 2 inch overall length. The 3-flute geometry paired with a 38-degree helix angle promotes efficient chip evacuation and smooth cutting action in materials such as aluminum, brass, and copper. A TiB2 (titanium diboride) coating improves surface hardness and reduces built-up edge on non-ferrous workpieces. This tool is suited for CNC machining centers and manual milling operations where close-tolerance work is required.

The SGS 34729 is intended for milling non-ferrous metals in both production and job-shop environments. Its regular-length configuration and straight cylindrical shank make it compatible with standard collet chucks and end mill holders. The right-hand cut and right-hand flute direction are standard for conventional and climb milling setups. This is a single-end tool from SGS Series 43, built with micrograin carbide for edge retention in high-speed applications.

Key Features

• 3/16 inch cutting diameter with tight mill diameter tolerance of +0.00000 / -0.00032 inch
• 3 flutes with 38-degree helix angle for efficient chip flow in non-ferrous materials
• TiB2 coating reduces built-up edge and extends tool life on non-ferrous workpieces
• Micrograin solid carbide construction for rigidity and edge retention
• Right-hand cut, right-hand spiral flute direction for standard milling operations
• Straight cylindrical shank with shank diameter tolerance of +0.00000 / -0.00032 inch

Compatibility

Designed for milling non-ferrous metals; primary workpiece material code N. Fits standard collet chucks and end mill holders accepting a 3/16 inch straight shank.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and the machine in a safe, locked-out state. Seat the straight cylindrical shank fully in the collet or tool holder and torque the retention hardware per the tool holder manufacturer specifications. Verify runout with a dial indicator before cutting. Do not exceed the rated speed and feed parameters for the workpiece material and tool diameter.
