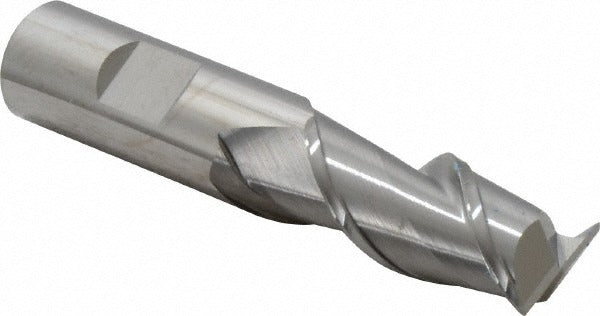

Sgs 34525 Square End Mill 0.75 in 2 Flute Solid Carbide

Product Description

The SGS 34525 is a solid carbide square end mill designed for precision milling operations in non-ferrous metals and similar materials. With a 0.75 inch mill diameter, a 1.625 inch length of cut, and a 2-flute geometry, this stub-length end mill delivers rigidity and chip clearance in demanding cutting environments. The 45-degree helix angle promotes efficient chip evacuation and smooth cutting action. The uncoated carbide construction makes it well-suited for non-ferrous applications where coating buildup can be a concern. This tool is installed and operated by machinists and CNC tooling technicians.

The 34525 is configured for right-hand cut with right-hand flute direction and a spiral flute geometry. The centercutting capability allows the tool to plunge directly into the workpiece. The Weldon flat shank provides a secure, positive grip in standard end mill holders, reducing the risk of tool pullout under load. The stub-length design adds stiffness and reduces deflection in tight-clearance setups. This is a Series 44 end mill from SGS, suited for production machining of non-ferrous metals including aluminum and copper alloys.

Key Features

• 0.75 inch diameter with matching 0.75 inch Weldon flat shank
• 2-flute spiral geometry with 45-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry into the workpiece
• Stub-length body for maximum rigidity and reduced deflection
• Right-hand cut and right-hand flute direction for standard spindle use
• Uncoated solid carbide construction optimized for non-ferrous metal applications

Compatibility

Designed for use in standard 0.75 inch end mill holders or collet chucks accepting a Weldon flat shank. Primary workpiece material is non-ferrous metal. Part of the SGS Series 44 end mill line.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Secure the Weldon flat shank in a properly sized end mill holder and torque the set screw against the flat per the tool holder manufacturer's specifications. Confirm spindle direction is set to right-hand rotation before engaging the cut. Inspect the tool and holder for runout before production use.
