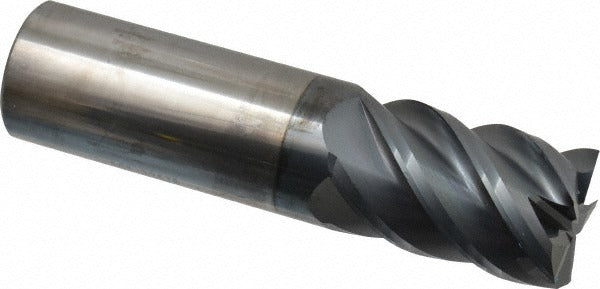

Sgs 32670 Square End Mill 1 in 5 Flute Solid Carbide Altin

Product Description

The SGS 32670 is a solid carbide square end mill designed for high-performance milling in demanding metalworking applications. With a 1 inch cutting diameter and five flutes, this end mill delivers efficient chip evacuation and a fine surface finish in a single-end configuration. The 45-degree helix angle reduces cutting forces and improves tool life across a wide range of workpiece materials. An AlTiN coating adds heat resistance and hardness at the cutting edge, making this tool well-suited for dry or semi-dry cutting at elevated speeds. Variable index geometry reduces harmonic vibration for cleaner cuts and extended tool life.

This end mill is intended for use in CNC machining centers and manual milling machines in production and job-shop environments. Primary workpiece material codes H, K, M, P, and S indicate suitability for hardened steels, cast irons, stainless steels, general steels, and heat-resistant superalloys. A straight cylindrical shank with tight tolerance allows secure seating in standard end mill holders, collet chucks, and shrink-fit tooling. The regular-length configuration suits most standard depth-of-cut requirements without sacrificing rigidity.

Key Features

• 5-flute geometry with variable index for vibration damping and improved surface finish
• AlTiN coating for elevated heat resistance and extended tool life in hard and exotic materials
• 45-degree helix angle reduces radial cutting forces and improves chip flow
• Micrograin solid carbide substrate provides rigidity and wear resistance
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• Straight cylindrical shank with precision tolerance for secure tool holder engagement

Compatibility

Designed for use in standard CNC machining centers and manual mills accepting a 1 inch straight shank end mill. Suitable for workpiece materials classified under SGS Series 55 primary material codes H, K, M, P, and S.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the spindle is fully stopped and the machine is in an e-stop or lockout state before changing tooling. Seat the shank to the full recommended insertion depth in the tool holder and verify runout with a dial indicator before cutting. Do not exceed the tool manufacturer recommended feeds and speeds for the workpiece material and coating type.
