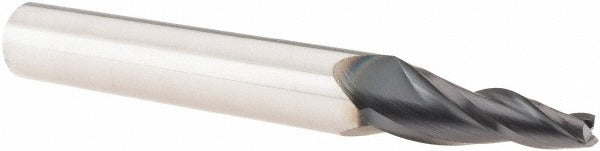

Sgs 32363 Tapered End Mill 3 Flute Solid Carbide Altin

Product Description

The SGS 32363 is a solid carbide tapered end mill designed for precision milling operations that require a controlled taper profile. It carries a 7-degree angle per side and a small end diameter of 0.25 inches, with a 1.25-inch length of cut and a 4-inch overall length. The 0.5-inch shank diameter provides rigid tool-machine interface. An AlTiN coating improves heat resistance and tool life when cutting at elevated surface speeds. Three spiral flutes with a 28-degree helix angle promote chip evacuation and reduce cutting forces. The micrograin carbide substrate supports sharp edges and consistent dimensional accuracy. Licensed machinists and CNC programmers install and qualify this tool.

This tapered end mill is suited for applications requiring drafted walls, mold cavities, core details, and contoured pockets in a machining center environment. The centercutting geometry allows plunge entry. Its taper profile is appropriate for die and mold work, aerospace component features, and precision part profiles where angled sidewalls are required. The AlTiN coating extends suitability into harder workpiece materials and dry or semi-dry cutting conditions.

Key Features

• 7-degree taper angle per side for drafted wall and cavity milling
• AlTiN coating for heat resistance and extended tool life at high surface speeds
• Micrograin solid carbide substrate for sharp, durable cutting edges
• 3 spiral flutes with 28-degree helix angle for efficient chip evacuation
• Centercutting design allows direct plunge entry
• Right-hand flute direction, compatible with standard CNC spindle rotation

Compatibility

Designed for use in CNC machining centers accepting a 0.5-inch round shank. Workpiece material codes H, K, M, N, P, and S are listed as primary compatible material groups per SGS Series 23 specifications.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. The machine spindle must be stopped and all motion axes confirmed stationary before tool changes. Use a properly sized collet or end mill holder that matches the 0.5-inch shank diameter to ensure concentricity and minimize runout. Verify tool projection and length offset in the control before cutting.
