Sgs 31609 Square End Mill 3/16 Inch 4 Flute Solid Carbide

Product Description

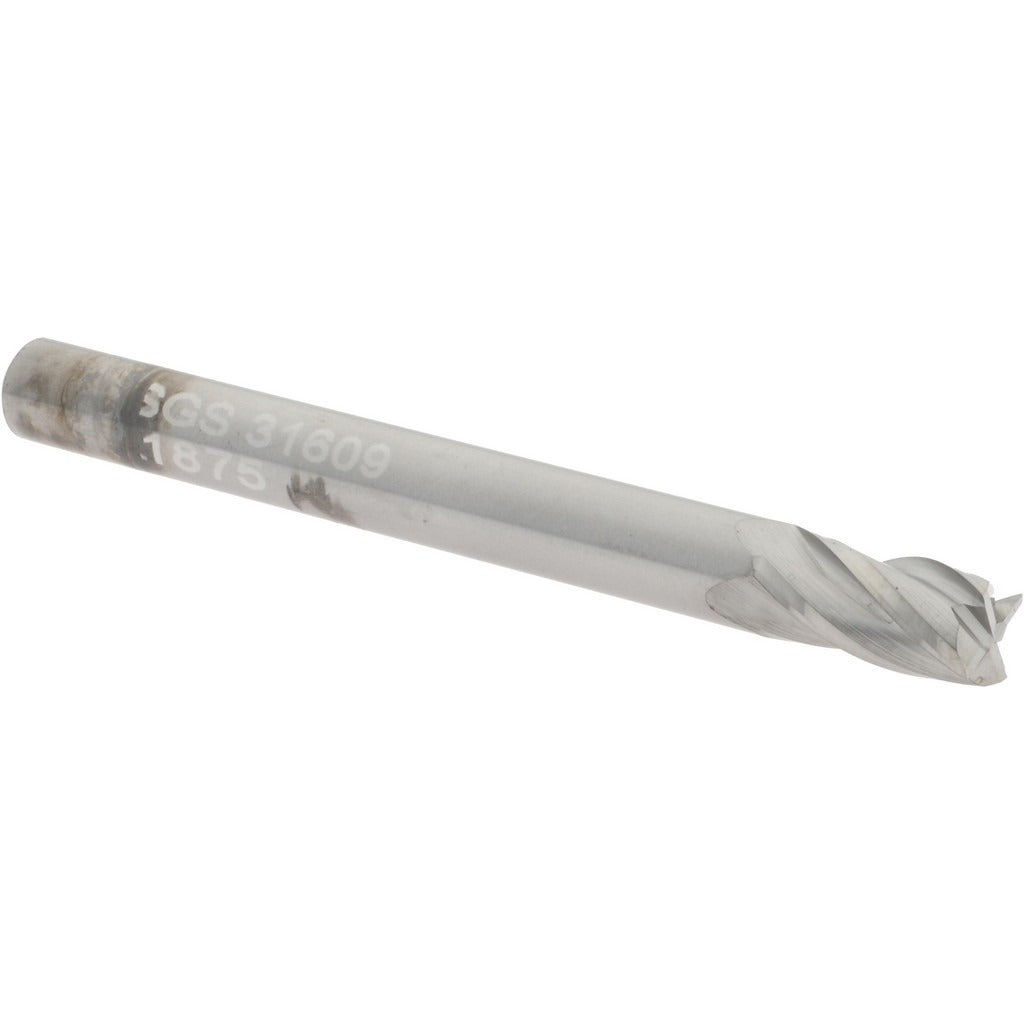

The SGS 31609 is a solid carbide square end mill designed for precision milling in a wide range of materials. Built to Series 16 specifications, it features a 3/16 inch diameter with a 3/8 inch length of cut and a 2 inch overall length in a stub-length configuration. The four-flute, right-hand spiral design with a 30-degree helix angle provides efficient chip evacuation and stable cutting performance. Micrograin carbide construction delivers hardness and wear resistance suited to demanding machining environments. It is centercutting capable, allowing direct plunge entry into a workpiece without a pre-drilled hole. This end mill is uncoated and ships ready for use in CNC machining centers and manual mills.

The SGS 31609 is suited for milling operations across a broad spectrum of workpiece materials, including cast iron, non-ferrous metals, stainless steel, steel, titanium alloys, and high-temperature alloys as indicated by primary material codes H, K, M, N, P, and S. Its stub-length geometry makes it well suited for applications requiring maximum rigidity and reduced deflection, such as slotting, profiling, and peripheral milling in tight setups. Machinists and CNC operators working in job shop or production environments will find this tool appropriate for both roughing and light finishing passes depending on feed and speed selection.

Key Features

• Solid micrograin carbide construction for superior hardness and tool life
• 4-flute right-hand cut with right-hand spiral flute and 30-degree helix angle
• Centercutting design allows direct plunge milling without a pilot hole
• Variable index flute spacing reduces harmonic vibration during cutting
• Stub-length OAL of 2 inches maximizes rigidity and minimizes deflection
• Straight-cylindrical shank with tight diameter tolerance of +0.00000/-0.00032 inches for secure tool holding

Compatibility

Designed as a Series 16 stub-length square end mill compatible with standard straight-shank tool holders accepting a 3/16 inch shank diameter. Suitable for use with materials classified under workpiece material codes H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes
