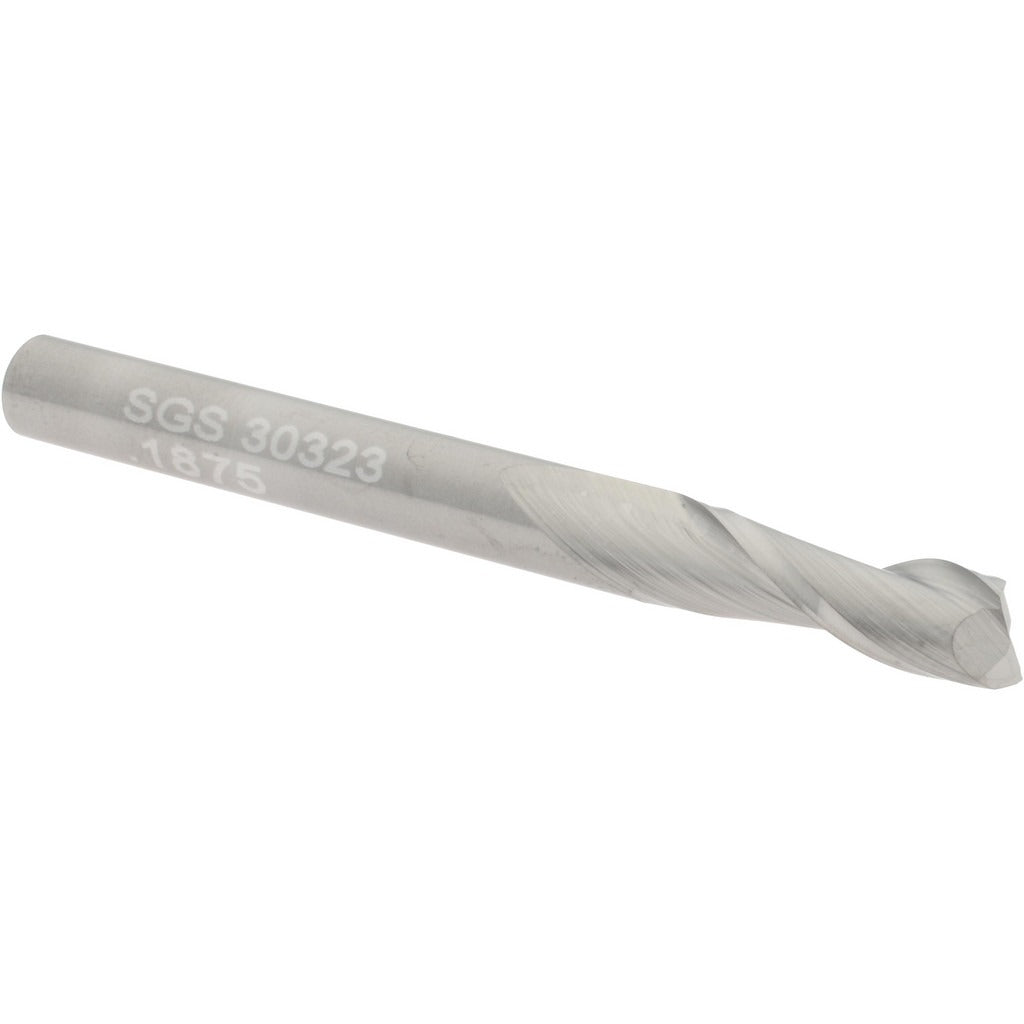

Sgs 30323 Square End Mill 3/16 Inch 2 Flute Solid Carbide

Product Description

The SGS 30323 is a solid carbide square end mill designed for precision material removal in metalworking and machining applications. With a 3/16 inch mill diameter and a 5/8 inch length of cut, this two-flute tool delivers clean, accurate cuts in a compact, regular-length profile. The micrograin carbide substrate provides the hardness and edge retention needed for demanding cutting conditions. Right-hand cut and right-hand spiral flute geometry promotes efficient chip evacuation. The centercutting design allows for plunge entry directly into the workpiece. This tool is installed and operated by machinists and CNC setup technicians.

The SGS 30323 is suited for milling operations across a broad range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, high-temperature alloys, and titanium, corresponding to material codes H, K, M, N, P, and S. It fits standard 3/16 inch straight-cylindrical shank toolholders and is appropriate for use in CNC machining centers and manual mills requiring a small-diameter, short-reach end mill in slotting, profiling, and plunge-cut applications.

Key Features

• Solid micrograin carbide construction for superior hardness and edge retention
• Two-flute, spiral flute design promotes efficient chip evacuation in a wide range of materials
• Centercutting geometry enables direct plunge entry without pre-drilling
• Right-hand cut and right-hand flute direction for standard spindle compatibility
• 30-degree helix angle balances cutting forces and surface finish quality
• Uncoated finish suitable for use with cutting fluids across multiple material types

Compatibility

Designed for use in standard 3/16 inch straight-cylindrical shank toolholders across CNC machining centers and manual milling machines. Compatible workpiece material codes include H, K, M, N, P, and S as specified by the manufacturer.

Installation Notes

Installation and operation should be performed by qualified machinists or CNC technicians. Ensure the spindle is fully stopped and the machine is powered down before inserting or removing the end mill from the toolholder. Verify that the toolholder bore matches the 3/16 inch shank diameter and that runout is within acceptable limits before beginning a cut. Use appropriate cutting fluid or coolant as required by the workpiece material to protect the uncoated carbide edge.
