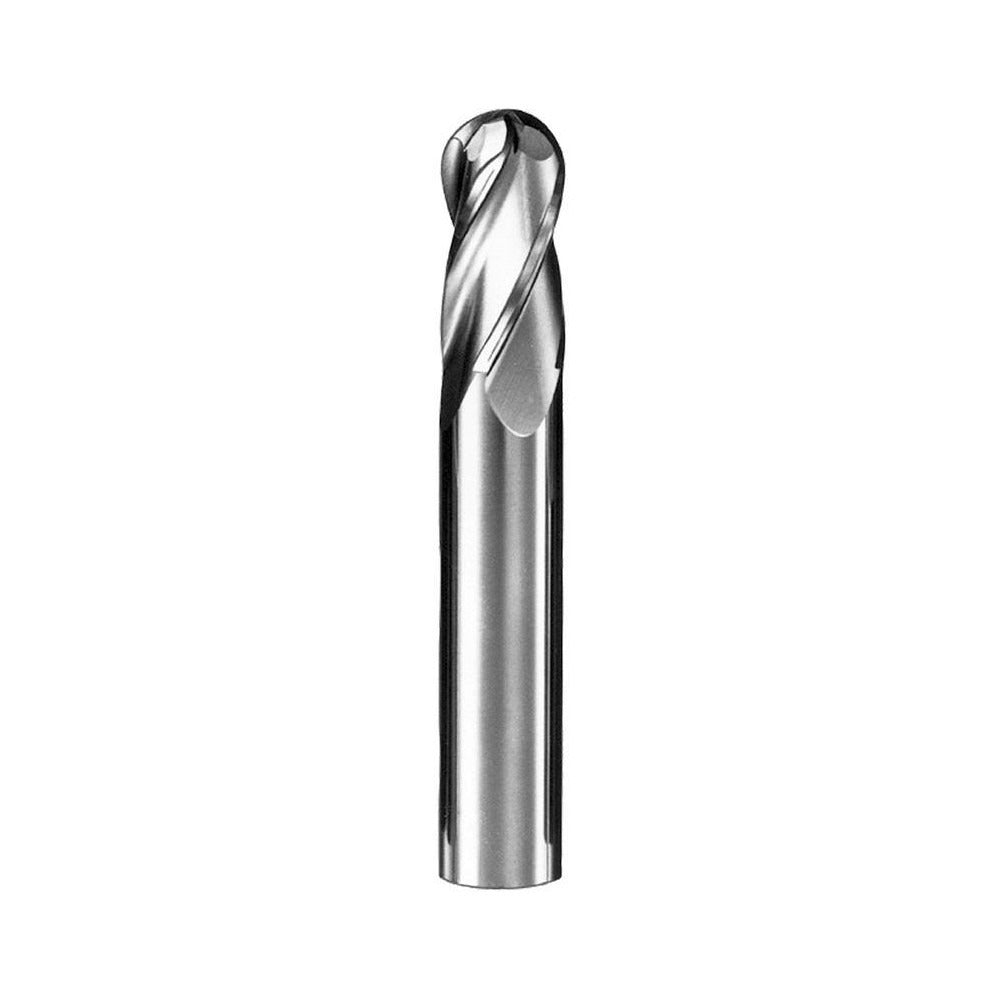

Sgs 30106 Ball End Mill 0.0469 in 4 Flute Solid Carbide

Product Description

The SGS 30106 is a solid carbide ball end mill designed for precision milling in demanding industrial and machining applications. With a 0.0469-inch (3/64-inch) mill diameter and a 0.1094-inch (7/64-inch) length of cut, this tool is built for fine detail work, contour milling, and profiling in tight geometries. The micrograin carbide construction provides the hardness and edge retention needed for consistent performance across ferrous and non-ferrous workpiece materials. Four flutes with a 30-degree right-hand helix promote efficient chip evacuation and surface finish quality. Variable index flute spacing helps reduce chatter during high-speed cuts.

This ball end mill is suited for precision CNC machining operations where small-diameter tooling is required. It performs in milling of hardened steels, cast irons, stainless steels, non-ferrous alloys, and high-temperature alloys, corresponding to material codes H, K, M, N, P, and S. The single-end, right-hand cutting configuration fits standard CNC machining centers and manual mills. The 1/8-inch shank diameter accommodates common collet sizes used in small-part and die/mold work.

Key Features

• 0.0469-inch (3/64-inch) ball nose diameter for fine contour and profile milling
• 4-flute spiral design with 30-degree right-hand helix for improved chip flow and surface finish
• Micrograin solid carbide construction for hardness and edge retention
• Variable index flute spacing reduces vibration and chatter during cutting
• Uncoated finish suitable for a wide range of workpiece materials without coating-compatibility concerns
• 1/8-inch shank diameter for compatibility with standard small-bore collet systems

Compatibility

Designed for use with CNC machining centers and manual mills equipped with 1/8-inch collet systems. Compatible workpiece material codes include H, K, M, N, P, and S, covering hardened steels, cast irons, stainless steels, non-ferrous alloys, plastics, and high-temperature alloys.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the 1/8-inch shank fully into the collet and torque the collet nut according to the collet manufacturer specifications. Verify runout with a dial indicator before beginning production cuts, particularly given the small diameter of this tool.
