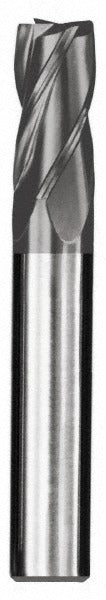

Sgs 30007 Square End Mill 17/64 in 4 Flute Solid Carbide

Product Description

The SGS 30007 is a solid carbide square end mill designed for precision milling in demanding metalworking applications. It features a 17/64 inch (0.2656 inch) cutting diameter, a 3/4 inch length of cut, and a 5/16 inch straight cylindrical shank. The four-flute, right-hand spiral geometry combined with an AlTiN coating delivers heat resistance and extended tool life in hard and abrasive materials. Micrograin carbide construction maintains edge sharpness across a range of workpiece materials. This end mill is centercutting, allowing plunge entry in addition to peripheral and slot milling operations.

The SGS 30007 is suited for milling operations on ferrous and non-ferrous metals, heat-resistant alloys, and cast materials. Primary workpiece material compatibility codes include H, K, M, N, P, and S, covering tool steels, cast irons, stainless steels, non-ferrous metals, carbon steels, and high-temperature alloys. With a 2-1/2 inch overall length and regular length classification, it fits standard CNC machining centers and manual milling machines where compact reach and rigidity are priorities. Machinists and tooling professionals working in job shops, production environments, and maintenance applications will find this a versatile general-purpose cutter.

Key Features

• 17/64 inch (0.2656 inch) cutting diameter with a mill diameter tolerance of +0.000 / -0.002 inches
• AlTiN finish for high-temperature wear resistance and extended tool life
• Four-flute spiral design with variable index for reduced chatter and improved surface finish
• Centercutting geometry enables plunge milling in addition to slot and profile cuts
• Micrograin solid carbide substrate for rigidity and edge retention in tough materials
• Right-hand cut and right-hand flute orientation; 30-degree helix angle

Compatibility

Compatible with workpiece material codes H, K, M, N, P, and S as specified by SGS Series 1 tooling classifications, covering applications in tool steels, cast irons, stainless steels, non-ferrous metals, carbon steels, and high-temperature alloys. Designed as an OEM-style SGS Series 1 square end mill for use in standard straight-cylindrical tool holders.

Installation Notes

Installation is performed by qualified machinists using an appropriate end mill holder or collet chuck rated for the 5/16 inch shank diameter. Ensure the machine spindle and tool holder are clean and free of debris before seating the shank. Verify runout after clamping to stay within the shank diameter tolerance of -0.0001 / -0.0004 inches. Follow the machine tool manufacturer and applicable shop safety procedures when setting cutting parameters for the workpiece material.
