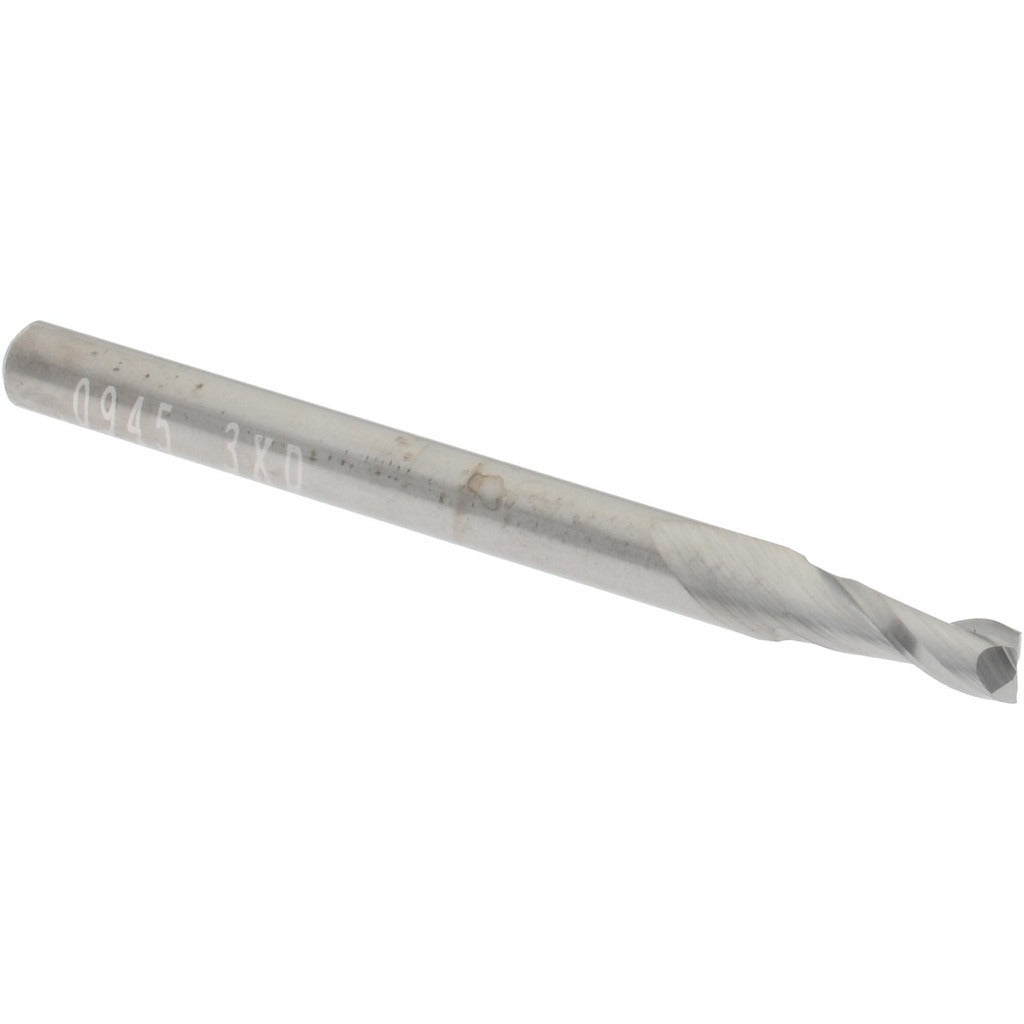

Sgs 01845 Square End Mill 3/32 in 2 Flute Solid Carbide

Product Description

The SGS 01845 is a solid carbide square end mill designed for precision milling in metal, composites, and other hard materials. With a 3/32 inch (0.0938 inch) cutting diameter and a 9/32 inch (0.2813 inch) length of cut, this tool is built for tight-tolerance work in confined pockets and slots. The micrograin carbide construction delivers hardness and wear resistance suited to production and job-shop environments. A licensed machinist or tooling technician is the typical end user for this style of cutter.

This end mill is well suited to slot milling, profiling, and light pocketing operations on CNC machining centers and manual mills. The 1/8 inch straight-cylindrical shank fits standard collet systems. With a 1-1/2 inch overall length and regular length classification, it provides good rigidity for small-diameter cutting without excessive overhang. Applications span aerospace, mold and die, medical device, and general precision machining where a small-diameter, two-flute geometry is required for chip evacuation in ductile and semi-hard materials.

Key Features

• Solid micrograin carbide construction for hardness and extended tool life
• Two-flute spiral geometry promotes chip clearance in slotting and profiling
• Centercutting design allows plunge entry into workpiece
• Right-hand cut and right-hand flute direction for standard CNC and manual mill spindles
• Bright/uncoated finish suitable for use with or without cutting fluid
• Mill diameter tolerance of +0.0000/-0.0008 inch ensures close-tolerance fitment

Compatibility

Designed as an OEM-style replacement or direct-use solid carbide end mill for 1/8 inch straight collet systems on CNC machining centers and manual milling machines requiring a small-diameter square end mill.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully stopped and machine power isolated. Use a properly sized collet and torque the drawbar or collet nut to the machine manufacturer specification. Inspect the shank and collet bore for chips or damage before seating the tool. Follow applicable shop safety procedures and machine tool manufacturer guidelines when setting tool offsets and runout.
