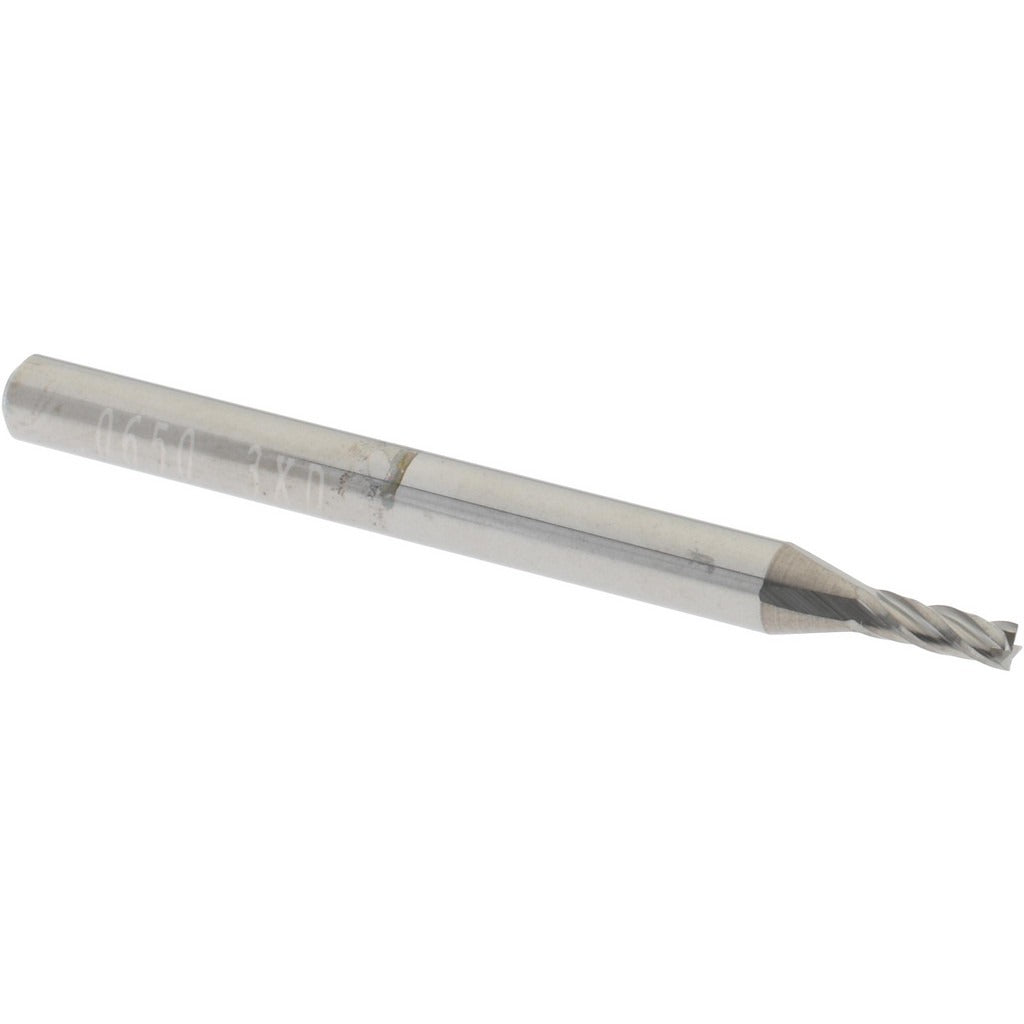

Sgs 00571 Square End Mill 0.065 in 4 Flute Solid Carbide

Product Description

The SGS 00571 is a solid carbide square end mill designed for precise milling operations in metalworking and machining applications. Built from micrograin solid carbide, it offers the rigidity and edge retention needed for cutting ferrous and non-ferrous materials. The 4-flute, right-hand spiral geometry with a 30-degree helix angle promotes efficient chip evacuation and stable cutting at higher feed rates. At 0.065 inches in diameter with a 0.195-inch length of cut, this tool is well suited for fine detail work, slotting, and profiling in tight tolerances. The centercutting design allows for plunge entry, adding versatility to the application. Licensed machinists and CNC operators are the primary installers and users of this tool.

The SGS 00571 is used in CNC machining centers, knee mills, and manual milling setups where small-diameter, high-precision cutting is required. Its 1/8-inch straight cylindrical shank fits standard collets and tool holders designed for that shank diameter. The regular-length profile and 1.5-inch overall length make it appropriate for shallow-to-medium depth milling passes. It is typically used on aluminum, steel, stainless steel, and other machinable materials where a bright, uncoated carbide tool is suitable. Series 1810 identifies the product family within the SGS lineup.

Key Features

• Solid micrograin carbide construction for rigidity and extended tool life
• 4-flute, right-hand spiral design with 30-degree helix angle for efficient chip evacuation
• Centercutting geometry allows direct plunge entry into workpiece
• Bright/uncoated finish suitable for a wide range of base materials
• Straight cylindrical 1/8-inch shank for compatibility with standard collets
• Mill diameter tolerance of +0.0000 / -0.0008 inches for consistent precision

Compatibility

Designed for use with standard 1/8-inch collets and tool holders in CNC machining centers and manual milling machines. No specific machine or system compatibility was provided in the product data.

Installation Notes

Installation and operation should be performed by qualified machinists familiar with CNC or manual milling equipment. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the shank fully and evenly in the collet to the recommended engagement depth per the tool holder manufacturer. Inspect the cutting edges for chipping or wear before each use, as small-diameter carbide end mills are sensitive to improper runout and excessive side load.
