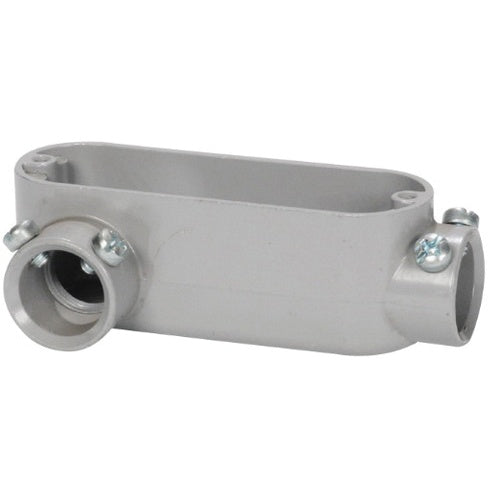

Sepco LR2AT Conduit Body 3/4 Inch Type LR Set-Screw

Product Description

The Sepco LR2AT is a three-quarter inch Type LR conduit body made from copper-free die-cast aluminum. This design ensures resistance to corrosion and weathering. Its flat back allows for easy mounting on various surfaces. The set-screw connection is compatible with EMT conduit, simplifying installation. This conduit body provides necessary access for conductor pulling, splicing, and maintenance tasks.

• Constructed from copper-free, die-cast aluminum for corrosion resistance.
• Facilitates easy access to conductors for maintenance and splicing.
• UL E198259 Listed and cULus Certified for safety compliance.

Product Highlights

This conduit body is ideal for trade professionals needing reliable conduit solutions. It has a cubic capacity of seven point three cubic inches and can hold three six AWG conductors.

Product Information

Standard Information

• Brand: Sepco
• MPN: LR2AT

Technical Specifications

• Material: Copper-Free Die Cast Aluminum
• Trade Size: 3/4 Inch
• Dimensions: 5.06 Inch Length x 2.25 Inch Width x 1.63 Inch Height
• Cubic Capacity: 7.3 Cubic Inches
• Maximum Wire Size: 3 #6 AWG
• Conduit Body Style: Type LR
• Cover Type: Screw-On
• Number of Hubs: 2
• Connection Type: Set Screw
• Access: Right Side
• Standards: UL E198259 Listed, cULus Certified
