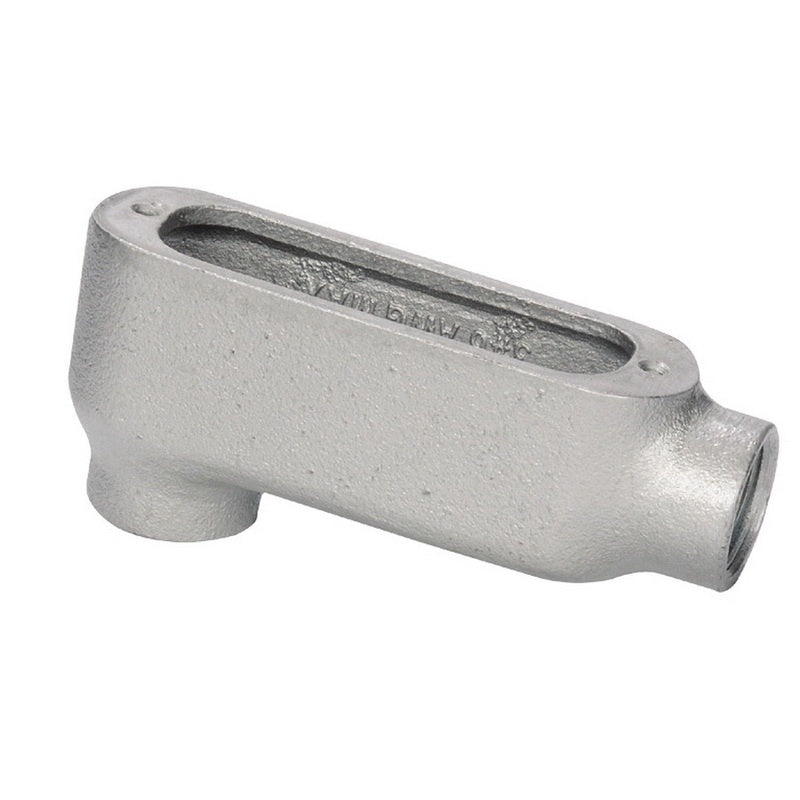

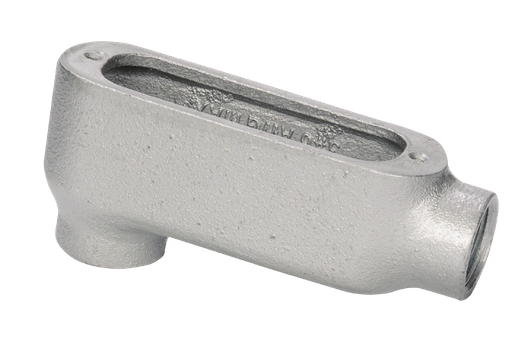

Sepco LB4 1-1/4 in Type LB Conduit Body

Product Description

The SEPCO LB4 is a conduit body designed for electrical applications. Made from malleable iron, this product features a zinc-plated finish. It is compatible with rigid and IMC conduits, connecting via two NPT threaded hubs set at 90 degrees.

• Flat back design allows easy mounting.
• Facilitates back side access to conductors.
• Includes a screw-on cover.

Product Highlights

This conduit body provides a capacity of 32.3 cubic inches and is able to accommodate up to three 2 AWG conductors. Its design allows for better access to conductors for pulling, splicing, and maintenance.

Product Information

Standard Information

• Brand: Sepco
• Finish: Zinc-plated

Technical Specifications

• Configuration: Type LB
• Conduit Type: Rigid/IMC
• Material: Malleable Iron
• Size: 1-1/4 in
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
