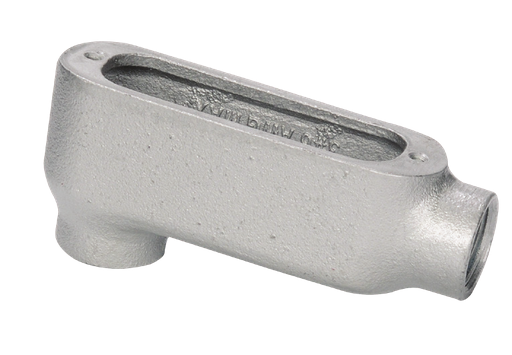

Sepco LB2 3/4-Inch Type LB Conduit Body

Product Description

The SEPCO LB2 is a 3/4-inch Type LB conduit body made from malleable iron. This conduit body is designed for use with threaded rigid and IMC conduit. It has a zinc-plated and aluminum enameled finish for added durability.

• Constructed from malleable iron for strength.
• Designed for use with standard conduit systems.
• Certified to cULus and UL standards.

Product Highlights

The SEPCO LB2 conduit body provides reliable access for pulling, splicing, and maintaining conductors. It features two hubs positioned at a 90-degree angle and is equipped with a screw-on cover for easy access.

Product Information

Standard Information

• Brand: Sepco
• Finish: Zinc-plated, Aluminum Enameled

Technical Specifications

• Configuration: Type LB
• Conduit Type: Rigid/IMC
• Material: Malleable Iron
• Size: 3/4 inch
• Trade Size: 3/4 Inch
• Standards: cULus Certified, UL Listed E121488
• Conduit Body Style: Type LB
• Number of Hubs: 2
• Cover Type: Screw-On
• Access: Back Side
• Conductor Capacity: 6 AWG
• Connection Type: Threaded
• Cubic Capacity: 7.5
• Dimensions: 5.375 inches Length x 1.5 inches Width x 2.25 inches Height
• Hub Placement: 90 Degrees
• Item Name: Conduit Outlet Body
• UPC: 78599440021
• GTIN: 00785994400219
• UNSPSC: 39131708
