Sepco C270 Zinc Duplex Cable Connector 3/8 Inch Replacement MPN

Product Description

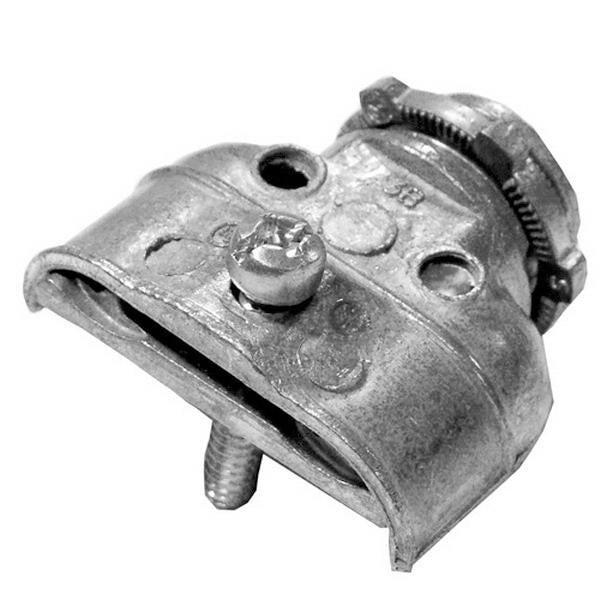

The Sepco C270 is a duplex single screw connector with a three-eighth inch trade size. It is made of die-cast zinc and designed to connect armored cable, metal clad, and flexible metallic conduit. This connector can accommodate conductors ranging from 0.438 to 1.688 inches. The fitting features a clamp x male NPS connection type and measures one point six two five inches in width. It meets UL E155411 and CSA LR57925 standards.

• Constructed from die-cast zinc
• Features tri-combo head screws
• Trade size of three-eighths inch

Product Highlights

The Sepco C270 connector is suitable for various electrical installations and ensures reliable connections for different conductor types.

Product Information

Standard Information

• Brand: Sepco
• Category: Electrical Components

Technical Specifications

• MPN: C270
• Fitting Type: Connector
• Trade Size: three-eighths inch
• Conductor Range: 0.438 - 1.688 inches
• Material: Die Cast Zinc
• Dimensions: one point six two five inches Width
• Connection Type: Clamp x Male NPS
• Standards: UL E155411, CSA LR57925
