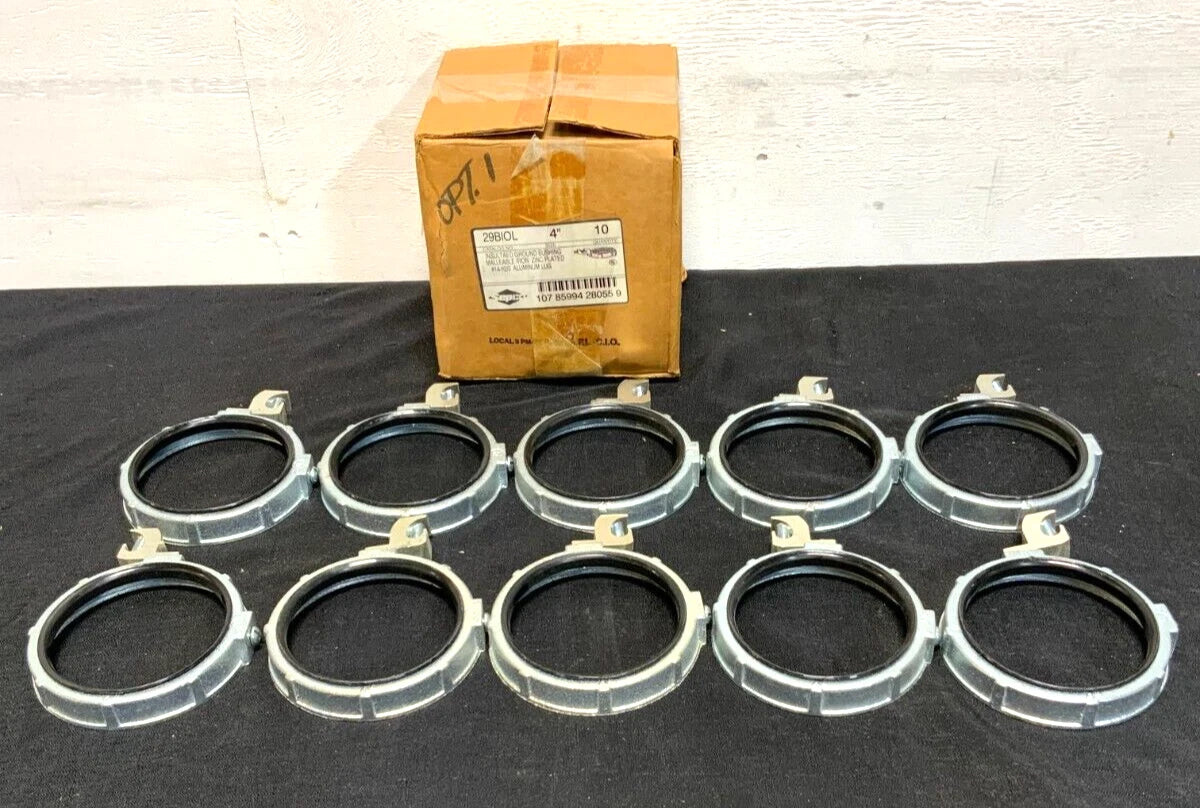

Sepco 29BIOL 4-Inch Insulated Grounding Bushing

Product Description

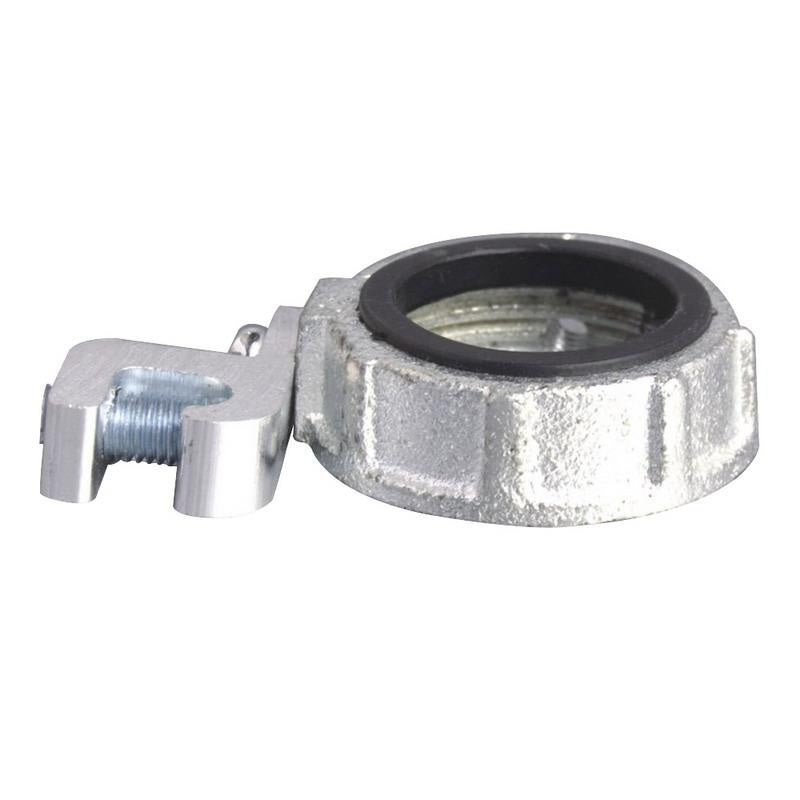

The SEPCO 29BIOL is a four-inch insulated grounding bushing made from zinc-plated malleable iron. This product is suitable for use with threaded rigid and IMC conduit, ensuring a secure fit. It includes aluminum lugs and can accommodate conductor sizes ranging from fourteen AWG solid to two-aught AWG stranded. A set screw is included to keep the bushing in place. The thermoplastic liner supports temperatures up to one hundred fifty degrees Celsius. The product meets UL 514B standards and is CSA certified.

• Constructed from zinc-plated malleable iron.
• Accommodates wire sizes from fourteen AWG to two-aught AWG.
• Thermoplastic liner rated for one hundred fifty degrees Celsius.

Product Highlights

This grounding bushing is essential for providing a reliable electrical connection and grounding path within electrical installations.

Product Information

Standard Information

• Brand: SEPCO
• MPN: 29BIOL

Technical Specifications

• Material: Malleable Iron
• Standards: UL 514B, E88878 Listed, CSA Certified
• Temperature Rating: 150 degrees Celsius
• Trade Size: 4 Inch
• Outside Diameter: 5.19 inches
• Length: 1.1 inches
• For Use With: Threaded Rigid/IMC Conduit
• Connection Type: Threaded
• Conductor Range: 14 AWG Solid to 2/0 AWG Stranded
• UPC: 785994280552
• Category: Steel Rigid Conduit Fittings
• Fitting Type: Grounding Bushing
• Insulation: Insulated
• Threaded: Yes
