Sepco 20BI4L 1/2 Mall Ins Grd

Product Description

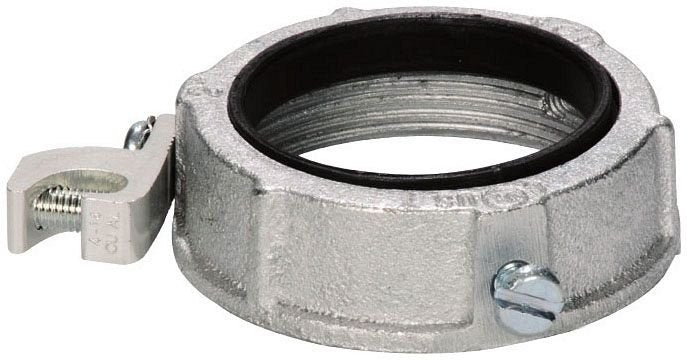

The SEPCO 20BI4L is an insulated grounding bushing with an open side tin-plated aluminum lug. Features zinc-plated malleable iron construction for low-pressure applications. The corrosion-/chemical-resistant thermoplastic liner prevents damage to wire insulation. Accommodates conductor sizes 14 AWG solid to 4 AWG stranded. Withstands a temperature rating of 150 deg C.

• Insulated grounding bushing
• Open side tin-plated aluminum lug
• Zinc-plated malleable iron construction
• Corrosion-/chemical-resistant thermoplastic liner

Product Highlights

This grounding bushing has a threaded connection and a trade size of 1/2 Inch. Ideal for use with low-pressure applications.

Product Information

Standard Information

• Brand: SEPCO
• Manufacturer Part Number: 20BI4L

Technical Specifications

• Construction: Zinc-plated malleable iron
• Application: Low-pressure
• Connection: Threaded
• Trade Size: 1/2 Inch
• Liner: Corrosion-/chemical-resistant thermoplastic
• Conductor Size: 14 AWG solid - 4 AWG stranded
• Temperature Rating: 150 deg C
• Brand: Sepco
