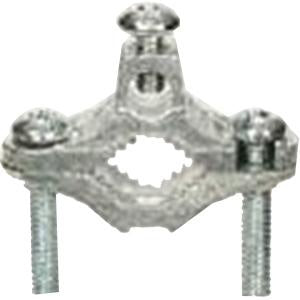

Sepco 10BG Die Cast Zinc Ground Clamp 1/2 - 1-Inch 8-2-AWG

Product Description

The Sepco 10BG Die Cast Zinc Ground Clamp is designed for effective connections of conductors. This clamp connects 8-AWG solid to 2-AWG stranded cables to iron pipes sized from one-half to one inch. With a width of 2.22 inches, the clamp features durable zinc die-cast construction and a zinc-plated finish, which helps to prevent corrosion. It includes a steel screw that provides strong clamping force for reliable connections.

• This clamp is UL listed and CSA certified for safety.
• It is suitable for grounding bare copper wire to water pipes, ground rods, or copper water tubing.
• The clamp operates within a trade size of 1/2 to 1 inch IPS.

Product Highlights

The Sepco 10BG is essential for electrical grounding and bonding applications.

Product Information

Standard Information

• Brand: Sepco
• Part Number: 10BG

Technical Specifications

• Dimensions: 2.22 inches wide
• Conductor Size: 8 AWG solid to 2 AWG stranded
• Material: Die Cast Zinc
• Finish: Zinc Plated
• Standards: UL E88878 Listed, CSA LR57925 Certified
