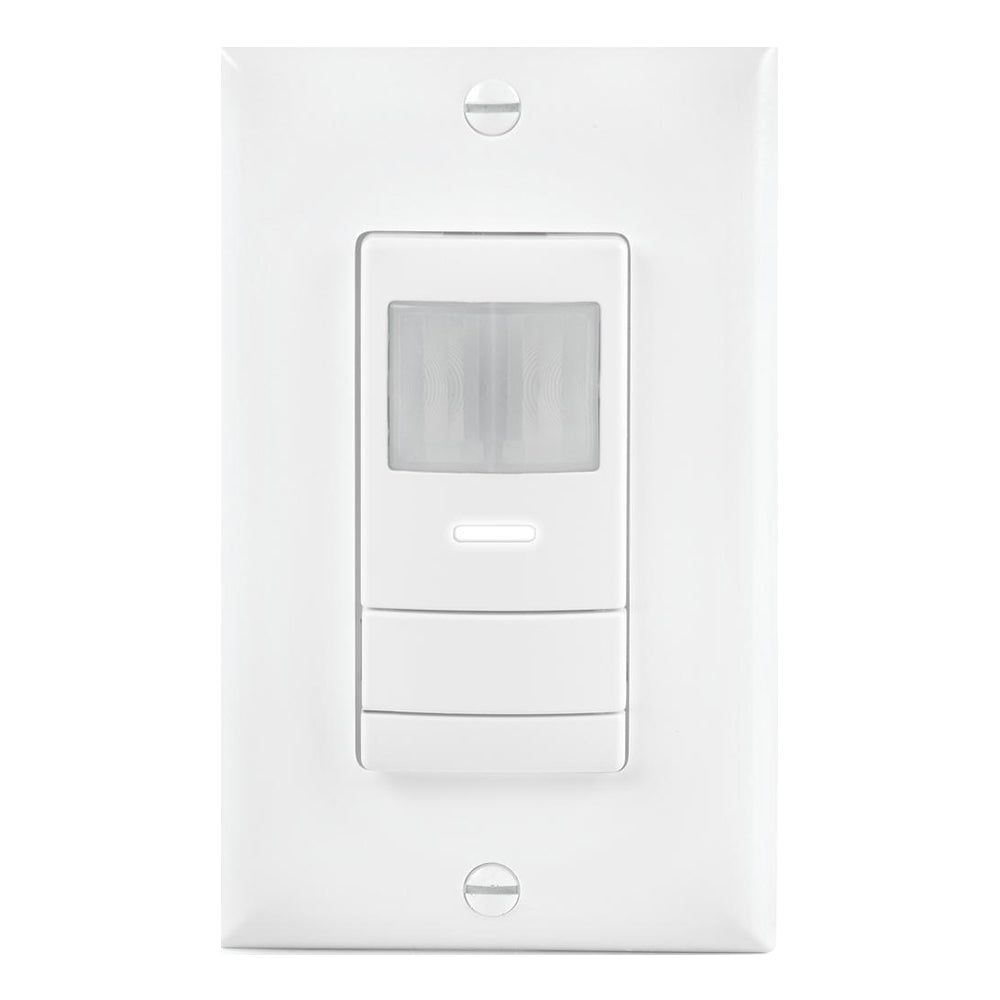

Sensor WSXAWH Wall Switch Occupancy Sensor 120-277V 20' Range

Product Description

The Sensor WSXAWH is a wall switch occupancy sensor made for controlling lighting in both commercial and residential areas. This sensor uses digital passive infrared (PIR) detection along with Microphonic technology to detect motion. It comes with soft-click buttons and a low-profile design. This unit can be wired with or without a neutral connection. It also has a user-programmable time delay feature, ensuring it suits various preferences. Moreover, a built-in photocell prevents lights from activating when sufficient daylight is available. This makes it compatible with LED, CFL, and incandescent lighting types.

• Supports motion detection for small movements up to twenty feet and large movements over thirty-six feet.
• Can operate on either one hundred twenty volts or two hundred seventy-seven volts, fitted into a single gang switch box.
• Complies with NEC 2011 Section 404.2C neutral requirements.

Product Highlights

Ideal for energy-efficient lighting control in diverse settings.

Product Information

Standard Information

• Manufacturer: Acuity Controls
• MPN: WSXAWH

Technical Specifications

• Input Voltage: 120V or 277V
• Lighting Technology: Sensor
• Motor Load: 1/4 HP
• Frequency: 50/60Hz
• Operating Temperature: 0°C to 60°C
• Mounting Height: 30-48 inches
• Dimensions: 2.74 H x 1.68 W x 1.63 D (not including ground strap)
• Warranty: 5 Year Limited
