Sellstrom S31200 Arc Flash Face Shield 9 Cal/cm2

Product Description

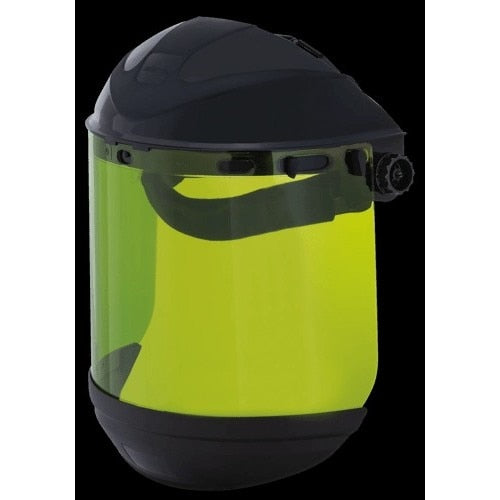

The SELLSTROM S31200 is a 312 Series arc flash rated face shield system designed to protect workers from arc flash, impact, splashes, particles, and flying debris. The molded polycarbonate window is rated at 9.9 cal/cm2 and curves naturally to fit facial contours, providing reliable coverage across the face and neck. A large high-impact polycarbonate crown and chin guard combo extends protection to the head and neck. The shield incorporates a light green tint formulated to allow 55% light transmittance, supporting true color optics without sacrificing protection. Installation is handled by qualified electrical workers during arc flash hazard work.

The S31200 is suited for electrical trade professionals, industrial maintenance workers, and utility technicians performing tasks in environments subject to arc flash exposure. The included universal slot adapter fits most slotted hard hats, making this system compatible with standard PPE setups on commercial and industrial job sites. Replacement parts are available separately, reducing the cost of ownership over the service life of the system.

Key Features

• 9.9 cal/cm2 molded polycarbonate window rated for arc flash protection
• Window curves to fit facial contours for impact resistance and reliable splash and debris protection
• Light green tint delivers 55% light transmittance for true color optics
• Large polycarbonate crown and chin guard provides extended head and neck coverage
• Universal slot adapter included for compatibility with most slotted hard hats
• Meets ANSI Z87.1+, ASTM F2178-06, and NFPA 70E standards

Compatibility

Includes a universal slot adapter designed to fit most slotted hard hats for use in standard industrial and electrical PPE configurations.

Installation Notes

Arc flash face shield systems are donned and secured by the worker prior to beginning any task with identified arc flash hazard. Power down and follow lockout/tagout procedures in accordance with NFPA 70E before approaching energized equipment whenever possible. Inspect the shield for cracks, scratches, or deformation before each use, and replace any damaged components before returning to service.

Technical Specifications

• Arc Flash Rating: 9.9 cal/cm2
• Lens Material: Polycarbonate
• Light Transmittance: 55%
• Tint: Light Green
• Standards: ANSI Z87.1+, ASTM F2178-06, NFPA 70E
• Unit of Measure: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: SELLSTROM
• Manufacturer Part Number: S31200
