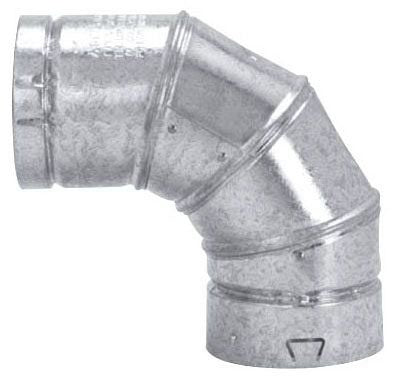

Selkirk 7RV-EL90 RV 90 Degree Adjustable Elbow 7 Inch

Product Description

The Selkirk 7RV-EL90 RV 90 Degree Adjustable Elbow is essential for creating offsets to navigate around obstructions like rafters and joists. This product allows the orientation of pipes between vertical and horizontal positions. Designed for use with approved gas appliances, it is suitable for residential, light commercial, and industrial applications.

• Facilitates pipe orientation between vertical and horizontal angles.
• Four-piece adjustable design allows for easy customization of offsets.
• Compliant with industry standards for safety and performance.

Product Highlights

This elbow is designed for flexibility in installation, enabling adjustments as needed.

Product Information

Standard Information

• Item: Elbow
• Type: 4-Piece, Round, Adjustable, Double Wall

Technical Specifications

• Angle: 90 Degree
• Applicable Standard: UL 441, ULC S-605, NFPA 54/211
• Material: Aluminum (Inner Wall), Galvanized Steel (Outer Wall)
• Material Thickness: 28 Gauge (Outer Wall)
• Size A: 7 Inch Diameter
• Size B: 7 Inch Diameter
