Selkirk 6RV AF12 Roof Flashing 6 in

Product Description

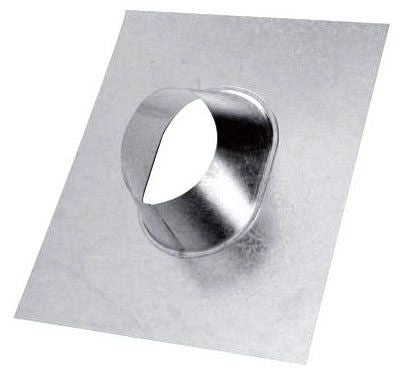

Selkirk 6RV AF12 is an adjustable 6-inch roof flashing designed for vent pipes and compatible with roof pitches from flat to 6/12. The unit uses a Lock-Tab configuration and is part of the RV series. It features a galvanized steel outer wall with an aluminum inner liner in a double-wall assembly and a 1/4 inch uniform airspace. Common applications include RV round vent and B-vent gas vent installations.

• Adjustable 6 in flashing, suitable for vent pipes and RV round vent fittings
• Lock-Tab configuration with double-wall construction (aluminum inner liner, galvanized outer wall) and 1/4 in airspace
• Base dimensions 24-1/4 in x 20 in; designed for roof pitches from flat to 6/12

Product Highlights

6-inch adjustable roof flashing with Lock-Tab design and double-wall galvanized/aluminum construction

Product Information

Standard Information

• Brand: SELKIRK
• Manufacturer Part Number: 6RV AF12
• Country of Origin: Domestic (USA)

Technical Specifications

• Brand: Selkirk
• Manufacturer: Selkirk Corporation
• Manufacturer Part Number: 6RV AF12
• Other Part Numbers: 106830, 434102, 28578
• Model/MPN: 6RV-AF12
• Type: Adjustable roof flashing (suitable for Type B gas vent and RV round vent)
• Series: RV Series
• Collection: Lock-Tab
• Diameter: 6 in
• Pipe Size: 6 in
• Base Dimensions: 24-1/4 in x 20 in
• Lower Height: 6-1/2 in
• Pitch Range: flat to 6/12
• Material: Galvanized steel outer wall; aluminum inner liner (double-wall)
• Construction: Double-wall with 1/4 in uniform airspace; die-formed male end
• Locking System: Lock-Tab (snap-together non-positional)
• Finish: Galvanized
• Listed Standards: UL 441; ULC-S-605; NFPA 54/211
• Suitable For: RV round vent pipe and B-vent gas vent
• UPC: 053713126796
