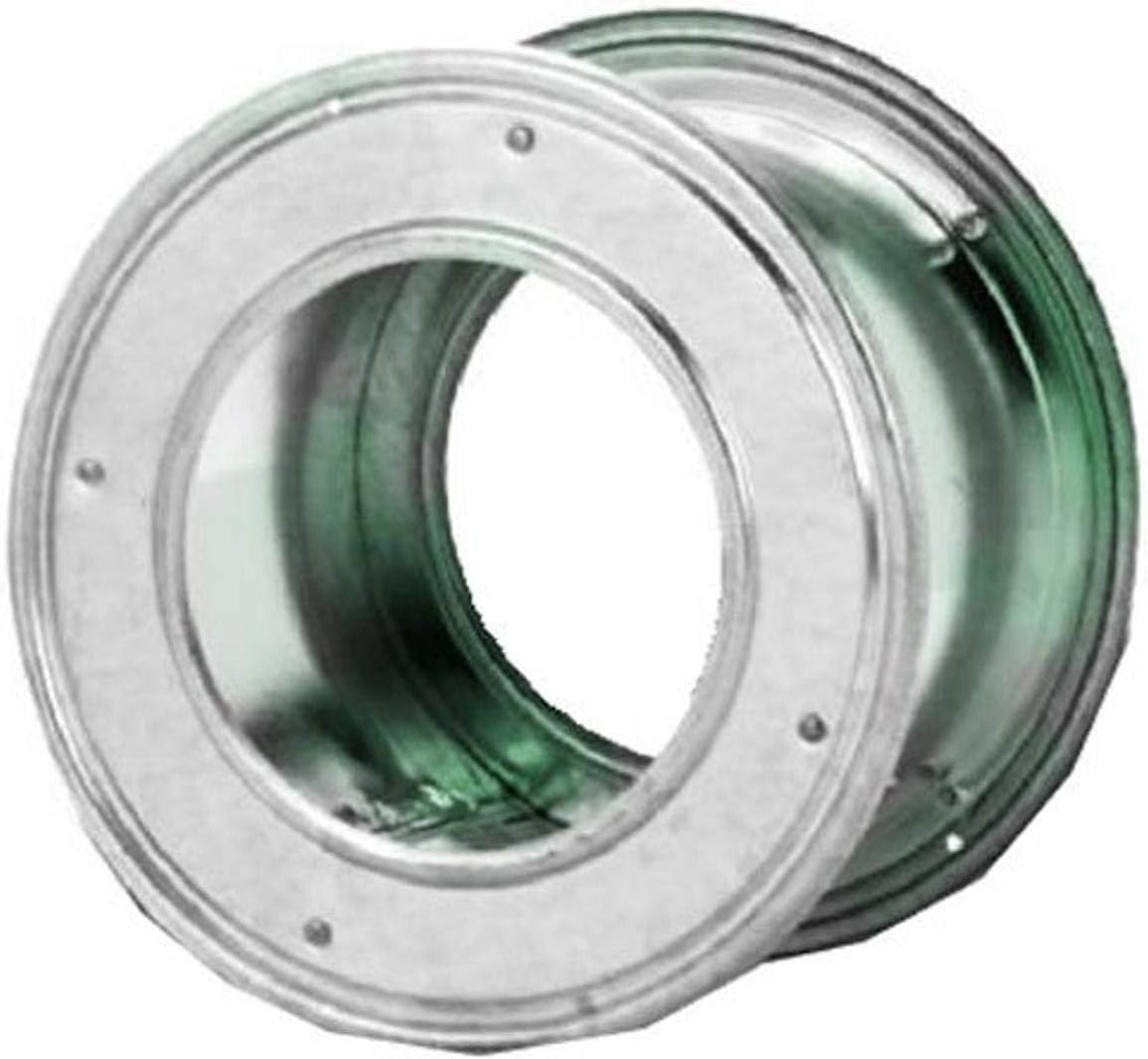

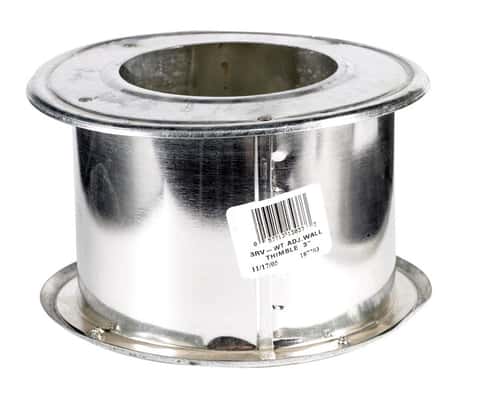

Selkirk 187703 Wall Thimble 3-Inch

Product Description

The SELKIRK 187703 3-Inch Wall Thimble is designed to maintain airspace clearance for gas fittings. It adjusts to fit the thickness of a wall and serves as a firestop. This wall thimble is suitable for Type B gas vents and is applicable for commercial, residential, and industrial applications.

• Ensures clearance to combustibles is maintained.
• Serves as a firestop.
• Adjusts from 4-1/8'' to 7'' to fit thickness of wall.

Product Highlights

The Selkirk 187703 wall thimble maintains airspace clearance, acts as a firestop, and adjusts to fit various wall thicknesses for gas fittings in multiple applications.

Product Information

Standard Information

• Brand: SELKIRK
• Manufacturer Part Number: 187703
• Country of Origin: United States

Technical Specifications

• Size: 3 Inch
• Item Model Number: 187703
• Part Number: 187703
• Item Package Quantity: 1.0
• Material: Plastic
• Model Name: SELKIRK CORP 187703 3-Inch Wall Thimble
• Included Components: SELKIRK CORP 187703 3-Inch Wall Thimble
• Applicable Standard: UL, UL 441, ULC S605, NFPA 54/211
• Overall Diameter: 7 Inch
• Wall Thickness: For 4-1/8 to 7 Inch
• Used On: Type B Gas Vent
• Application: Commercial, Residential, Industrial, Light Commercial
• Brand: Selkirk
• Manufacturer: SELKIRK CORP
• Number of Items: 1.0
• Adjusts from: 4-1/8 in. to 7 in.
• Diameter: 7 in
• Type: Adjustable
• Series: RV Series
• Finish: Galvanized
• Domestic/Import: Domestic
• Diameter (Inches): 3
