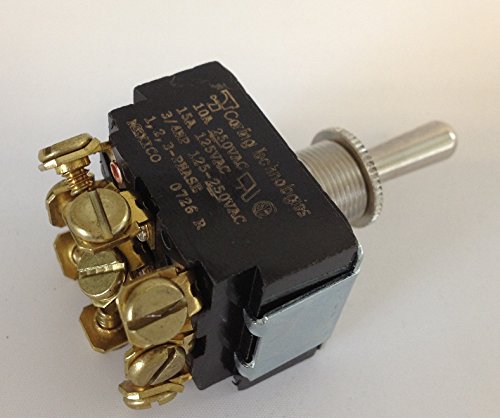

Selecta Switch Ss212a-Bg Toggle 3PDT 15A

Product Description

The Selecta Switch SS212A-BG is a heavy-duty toggle switch with a 3PDT contact configuration and a current rating of 15A. This switch is designed for utility applications. It features a brass/nickel actuator and requires a 1/2 inch hole for mounting. It supports maintained on/off/on operation.

• Brass/Nickel actuator
• 1/2 in hole mounting
• 15/32 in dia bushing
• ON/OFF/ON (maintained)

Product Highlights

Heavy duty toggle switch with 3PDT configuration, 15A current rating, and maintained on/off/on operation.

Product Information

Standard Information

• Brand: Selecta Switch
• Manufacturer Part Number: SS212A-BG

Technical Specifications

• Brand: Selecta Switch
• Material: Metal
• Current Rating: 15 Amps
• Operation Mode: ON-OFF
• Connector Type: Quick Connect
• Mounting: 15/32"-32 TPI x 0.465" L Bushing
• Number Of Poles: 3
• Amperage Rating: 15 A
• Power Rating: 3/4 hp
• Terminal Type: Screw
• Type: Heavy Duty
• Voltage Rating: 125 VAC
• Standard & Approvals: UR Listed
• Contact Configuration: 3PDT
• Catalog ID: SELSS212A-BG
• Actuator: Bat
• Application: Utility
• Toggle Length: 0.687"
• Toggle Material: Brass/Nickel
• Operation: Maintained On/Maintained Off/Maintained On
