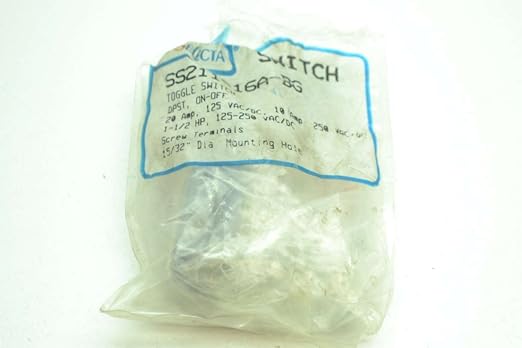

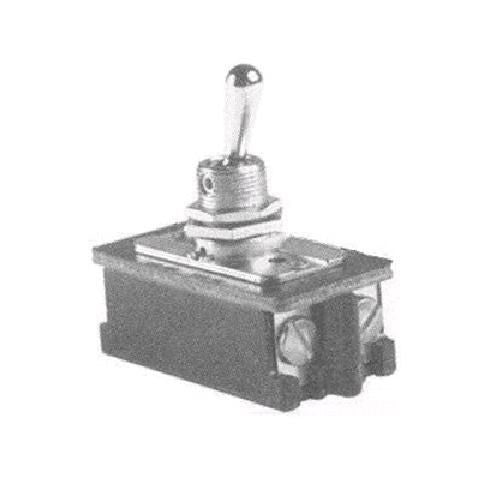

Selecta Switch SS211-16A-BG Toggle Switch DPST 10AMP

Product Description

The Selecta Switch SS211-16A-BG is a heavy-duty DPST toggle switch. Rated at 125/250 VAC/VDC, it handles 20 Ampere at 125 VAC/VDC and 10 Ampere at 250 VAC/VDC. Features a maintained on/off operation and a brass/nickel bat handle for durability.

• Input Voltage: 125 V-AC, 250 V-AC
• Output Current Rating: 10 A AMP, 20 A AMP
• Brass/Nickel actuator

Product Highlights

Heavy-duty toggle switch with maintained operation and durable construction for various applications.

Product Information

Standard Information

• Brand: Selecta Switch
• Manufacturer Part Number: SS211-16A-BG
• Country of Origin: United Kingdom

Technical Specifications

• Terminal: DPST
• Voltage: 125/250 Volts
• Current Rating: 20 Amps
• Maximum Current: 10 Amps
• Insulation Resistance: 1000 Megaohms
• Operating Voltage: 250 Volts
• Operation Mode: ON-OFF
• Switch Type: DPST, Toggle
• Connector Type: Quick Connect
• Material Type: Plastic
• Mounting: Threaded
• Number Of Poles: 2
• Power Rating: 1-1/2 hp
• Terminal Type: Screw
• Type: Heavy Duty
• Voltage Rating: 125/250 VAC
• Standard & Approvals: UR Listed
• Amperage Rating: 20/10 A
• Actuator: Bat
• Contact Configuration: DPST
• Brand: Selecta
• Operation Method: On/Off
• Model: SS211-16A-BG
• Application: ON/OFF
