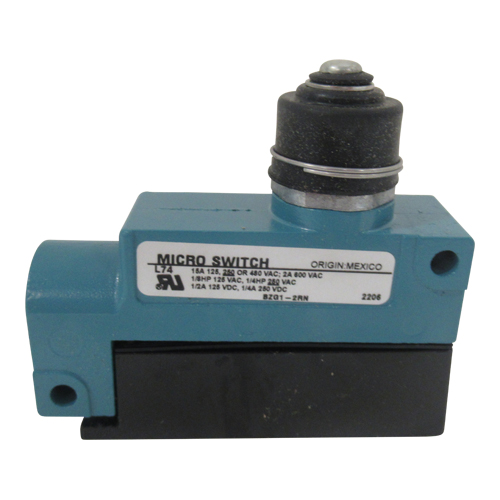

Selecta BZG1-2RN Enclosed Switch 125/250/480/600 VAC REPLACEMENT BZG

Product Description

The SELECTA BZG1-2RN enclosed switch is an industrial sealed type switch. It features a SPDT, 1NO, 1NC contact configuration and UL approval. Constructed with a die-cast zinc body and a straight plunger actuator/head type, this switch is suitable for packaging equipment, special machinery, and textile machinery applications. Rated for 125/250/480/600 VAC and 125/250 VDC voltage.

• Industrial sealed type
• SPDT, 1NO, 1NC contact configuration
• UL approval

Product Highlights

Industrial sealed switch with die-cast zinc body, straight plunger actuator, and SPDT contact configuration.

Product Information

Standard Information

• Brand: SELECTA
• Manufacturer Part Number: BZG1-2RN

Technical Specifications

• Mfr Catalog Number: BZG1-2RN
• UPC: 66119183121
• Product UPC: 66119183121
• UNSPSC: 39122209
• Product Category: Specialty Snap Action Swi
• Voltage: 125, 250, 480, 600 VAC
• Amperage: 15 A
• Actuator: Straight Plunger Actuator
• Contact Form: SPDT Contact
• Body Material: Die-cast zinc
• Operating Force: 9 to 24 oz
• Operating Position: 0.137 inch
• Differential Travel: 0.002 inch
• Pretravel: 0.078 inch
• Release Force: 0.25 lb
• Over Travel: 0.219 inch
• Temperature Rating: -25 to 160 deg F
• Dimensions: 3.04 inch L x 1.02 inch W x 1.8 inch H
