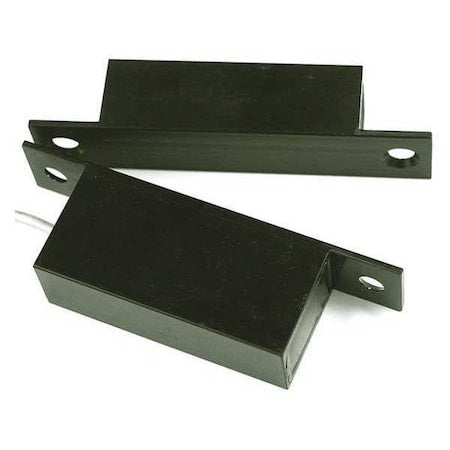

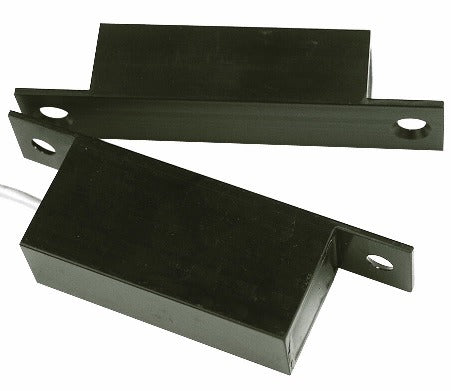

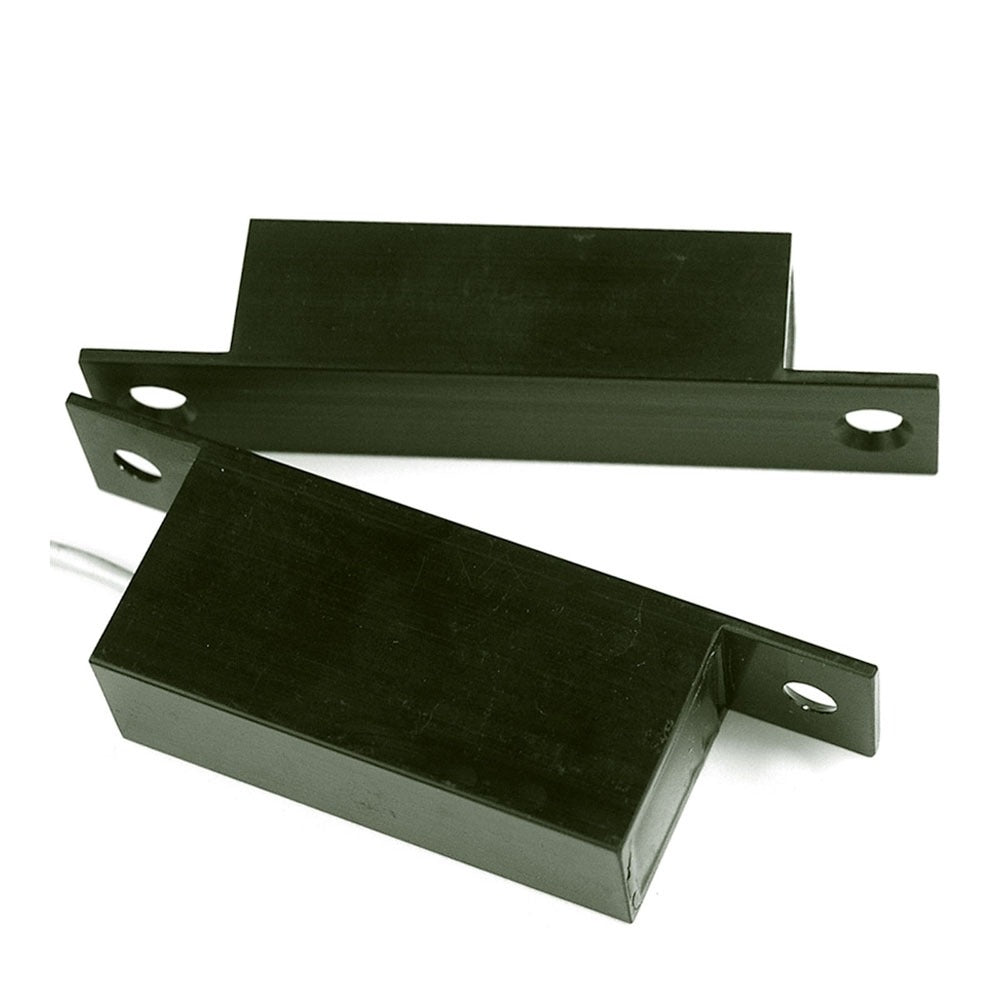

Securitron MSS-1C Door Switch ANSI 4-7/8 Cut-Out Mortise (SEC100MSS1C)

Brand: SECURITRON
SKU: MSS-1C
Availability: In Stock

Ships same day if ordered by 12 pm
$211.42
$211.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Securitron MSS-1C is a concealed door switch designed for ANSI 4-7/8 inch cut-out mortise installations; it includes a switch module and magnet pack and is intended for use in critical environments. The MSS-1C provides SPDT contacts with contact ratings of 125 mA at 24 VDC and 250 mA at 12 VDC, a typical operating separation of 0.1 to 0.6 inch, a tamper output and a unique mated magnetic contact to resist defeat by foreign magnets.

  • Mortise mounting for ANSI 4-7/8 inch cut-out; includes switch module and magnet pack; aluminum construction with satin aluminum finish
  • SPDT contact type; contact ratings: 125 mA @ 24 VDC and 250 mA @ 12 VDC; gap 0.4–0.5 inch, typical operating range 0.1–0.6 inch
  • Tamper-resistant design with hidden tamper output and unique mated magnetic contact; interfaces to access control and alarm systems and Securitron XDT timer

Product Highlights

Concealed ANSI 4-7/8 mortise magnetic switch, SPDT contacts, tamper output, operating range -40°F to +150°F

Product Information

Standard Information

  • Brand: SECURITRON
  • Manufacturer Part Number: MSS-1C
  • Country of Origin: United States
Technical Specifications
Brand
Securitron
Manufacturer Part Number
MSS-1C
Product Type
Concealed magnetic door position switch
Mounting/Cut-out
ANSI 4-7/8 inch cut-out door/frame mortise
Includes
Switch module, magnet pack
Material
Aluminum
Finish
Satin aluminum
Contact Type
SPDT
Contact Rating
125 mA @ 24 VDC; 250 mA @ 12 VDC
Operating Gap
0.4 to 0.5 inch (10 to 12.5 mm)
Typical Operating Range
0.1 to 0.6 inch (2.5 to 15 mm)
Operating Temperature
-40°F to +150°F (-40°C to +65°C)
Tamper Output
Hidden tamper output; tamper-resistant design
Magnetic Contact
Unique mated magnetic contact to resist defeat by foreign magnets
Interfaces
Interfaces to access control and alarm systems; can initiate Securitron XDT delayed egress timer
Armored Cable
Yes (armored cable options available)
Connectivity
Wired
Input Voltage
12 V DC, 24 V DC
Dimensions (Length)
1.03125 in
Dimensions (Height)
4.890625 in
Country of Origin
United States
