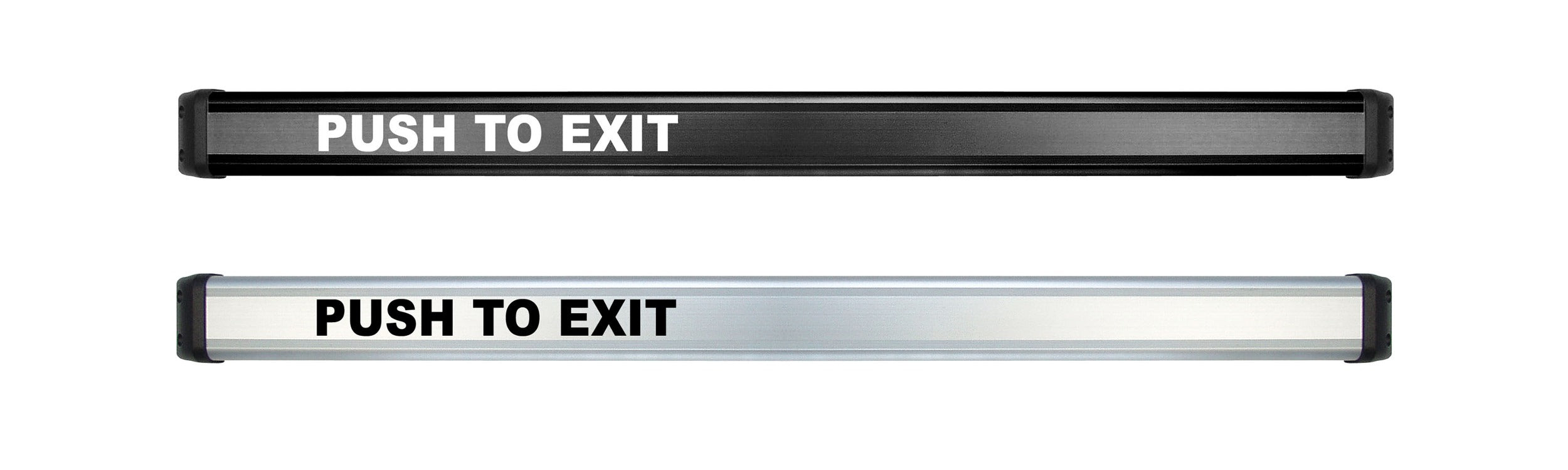

Securitron EMBCL Electromechanical Bar Clear Finish

Product Description

The SECURITRON EMBCL is an electromechanical exit bar designed for access-controlled door applications where electric locking hardware is required. The unit measures 35.5 inches in length, 3.6 inches in width, and 3.3 inches in height, and ships at 4.7 pounds. The clear finish suits aluminum storefront frames and doors where a low-profile, non-painted surface is preferred. Security integrators and licensed door hardware technicians are the primary installers of this device, typically in commercial or institutional settings requiring controlled egress.

The SECURITRON EMBCL is suited for commercial door applications where electromechanical locking and exit device functionality are combined in a single unit. It is commonly installed on single-door openings in office buildings, schools, healthcare facilities, and other access-controlled environments. The clear finish integrates cleanly with aluminum door and frame systems. Installers specify this bar when a project requires electric release capability without a separate panic hardware assembly.

Key Features

• Electromechanical design combines exit bar and electric locking in one unit
• Clear finish for compatibility with aluminum storefront and commercial door frames
• 35.5-inch bar length sized for standard commercial door widths
• Compact profile at 3.6 inches wide and 3.3 inches tall
• Sold individually as a single unit

Compatibility

Designed as an OEM-style electromechanical exit bar for commercial door access control systems. No specific compatible model numbers were provided in the product data.

Installation Notes

Installation should be performed by a licensed door hardware technician or security systems integrator familiar with electromechanical exit devices. Disconnect all power to the access control system before mounting or wiring the unit. Follow applicable local building codes and fire egress requirements, as exit hardware installations on fire-rated openings may require compliance with NFPA 80 and IBC provisions. Do not modify the bar housing or electrical components during installation.
