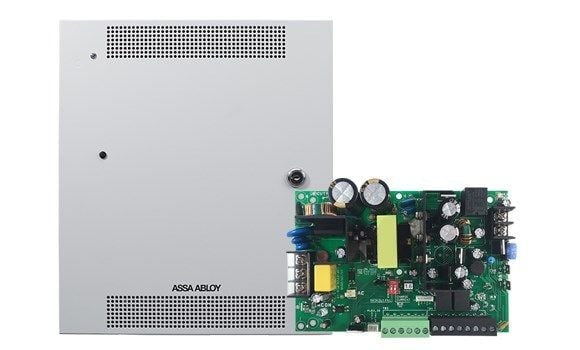

Securitron AQL4-2R8E1 Power Supply 4/3A DV With Enclosure (2) R8

Product Description

Securitron AQL4-2R8E1 is a dual-voltage switching power supply in an enclosure with two R8 output modules, field-selectable for 4 A at 12 VDC or 3 A at 24 VDC. The unit includes a dedicated fast battery charger, low-battery cutoff, enhanced surge immunity and LockSafe battery-cooling circuitry. It also provides OutSmart dual-color LED voltage indication, a Class 2 auxiliary output, integrated per-output fire alarm interface and optional network monitoring via Netlink.

• Field-selectable output: 4 A at 12 VDC or 3 A at 24 VDC with two R8 output modules and PTC output protection
• Integrated battery systems: dedicated fast charger, low-battery cutoff and LockSafe battery-cooling circuitry with instant auto-switch to battery on AC loss
• Interfaces and expandability: integrated per-output fire alarm interface (with R8), OutSmart dual-color LED, Class 2 auxiliary output, network ready (optional Netlink) and expandable up to 16 outputs

Product Highlights

Dual-voltage 4 A/3 A switching power supply with enclosure and two R8 modules; dedicated fast charger, fire alarm interface and expandable up to 16 outputs.

Product Information

Standard Information

• Brand: SECURITRON
• Manufacturer Part Number: AQL4-2R8E1
• Country of Origin: USA
