Seco SECOT-82329 Turning Insert Power ANSI Code CCMT432-F2 TP200

Product Description

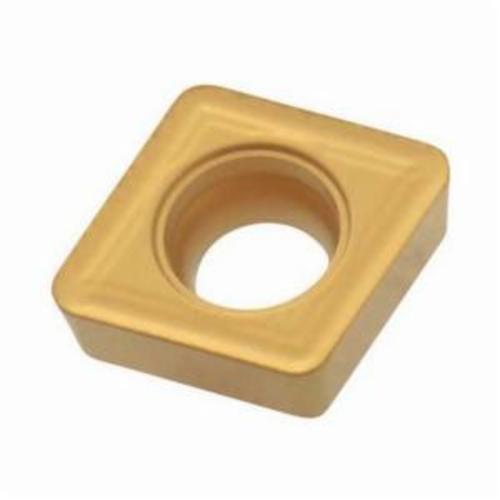

Seco 82329 is a high-performance turning insert designed for various machining tasks. This insert features the ANSI code CCMT432-F2 TP200 and is specifically made for use on steel. It is built with a diamond shape and possesses a positive rake, which enhances cutting performance. The insert is also CVD-TiCN+Al2O3+TiN coated for improved wear resistance.

• Designed for finishing applications
• Compatible with various turning tools
• Ideal for machining steel materials

Product Highlights

The Seco 82329 insert delivers precision and durability for machining needs. It is well-suited for industries requiring high-quality metalworking.

Product Information

Standard Information

• Brand: Seco Tools
• Material Grade: P

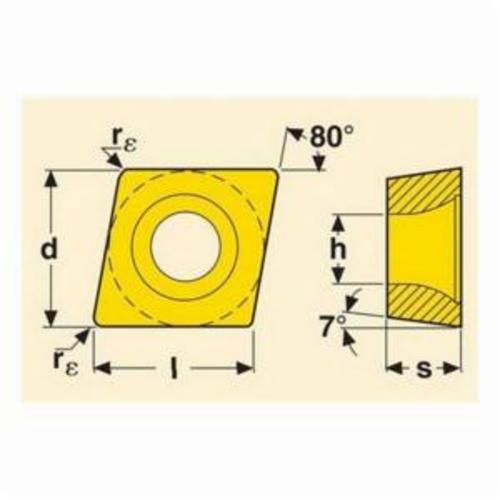

Technical Specifications

• ANSI Code: CCMT432-F2 TP200
• Chipbreaker: F2
• Corner Radius: 0.8 mm
• Finish: CVD-TiCN+Al2O3+TiN Coated
• Hole Diameter: 5.6 mm
• ISO Code: CCMT120408-F2 TP200
• Included Angle: 80 deg
• Inscribed Circle: 12.7 mm
• Maximum Depth of Cut: 5.25 mm
• Relief Angle: 7 deg
• Thickness: 4.76 mm
• Insert Style: CCMT
• Insert Size: 120408
• Shape: Diamond
• Seat Size: 12
• Rake: Positive
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
