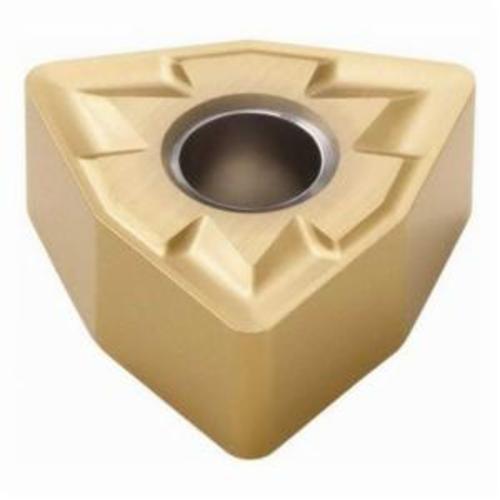

Seco SECOT-38993 Seco 02615922 Turning Insert ANSI Code: WNMG332-MR3 TS2000

Product Description

The Seco Turning Insert, model SECOT-38993, excels in medium and roughing applications. It features a trigon shape with a maximum depth of cut of three point seventy-five millimeters. Designed with a nine point fifty-two millimeters inscribed circle, this insert provides a robust solution for machining. The insert is suitable for materials such as stainless steel, super alloys, and titanium.

• ANSI Code: WNMG332-MR3 TS2000
• Material: Carbide, PVD-TiAlN+TiN Coated
• Corner Radius: zero point eight millimeters

Product Highlights

Efficient cutting for tough materials, effective for medium and roughing tasks.

Product Information

Standard Information

• Manufacturer: Seco Tools
• Material Grade: M, S

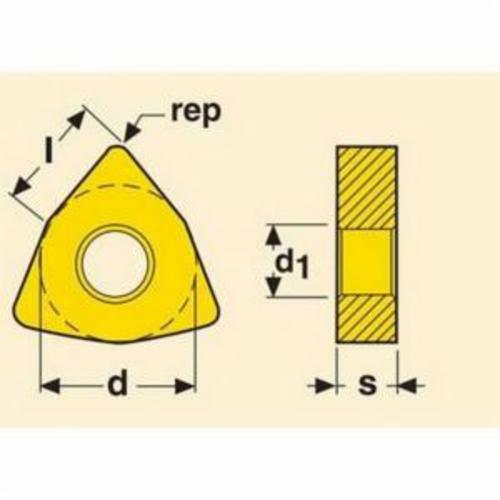

Technical Specifications

• Insert Style: WNMG
• Shape: Trigon
• Inscribed Circle: nine point fifty-two millimeters
• Thickness: four point seventy-six millimeters
• Rake: Negative
• Relief Angle: zero degrees
• Included Angle: eighty degrees
• Hole Diameter: three point eighty-one millimeters
