Seco SECOT-17915 Seco 02960706 Turning Insert ANSI Code TPU321 TP2501

Product Description

Seco SECOT-17915 is a turning insert designed for machining operations. This triangular insert features a titanium carbonitride and aluminum oxide coating for durability. It is suitable for cutting steel with its neutral cutting action.

• Material grade: P for steel machining.
• Manufacturer's grade: TP2501 guarantees performance.
• Insert shape: Triangular with a specific angle for precision.

Product Highlights

This turning insert ensures quality finishes and effective chip control during operations. It is ideal for various machining tasks from finishing to rough machining.

Product Information

Standard Information

• Brand: Seco
• MPN: SECOT-17915

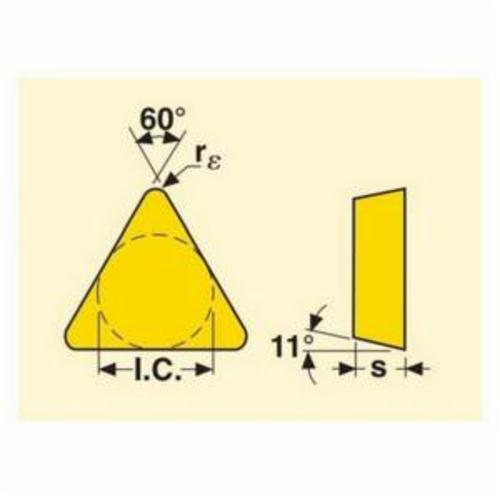

Technical Specifications

• ANSI Code: TPU321 TP2501
• Corner Radius: 0.4 mm
• Finish: CVD-TiCN+Al2O3 Coated
• ISO Code: TPUN160304 TP2501
• Included Angle: 60 deg
• Inscribed Circle: 9.52 mm
• Length: 16.5 mm
• Maximum Depth of Cut: 3.75 mm
• Relief Angle: 11 deg
• Thickness: 3.18 mm
• Insert Style: TPUN
• Material Grade: P
• Insert Size: 160304
• Shape: Triangular
• Seat Size: 16
• Cutting Direction: Neutral
• For Use On: Steel
• Material: Carbide
