Seco SECOT-15064 Turning Insert, ANSI Code: DNMG431-MF2 TP2501

Product Description

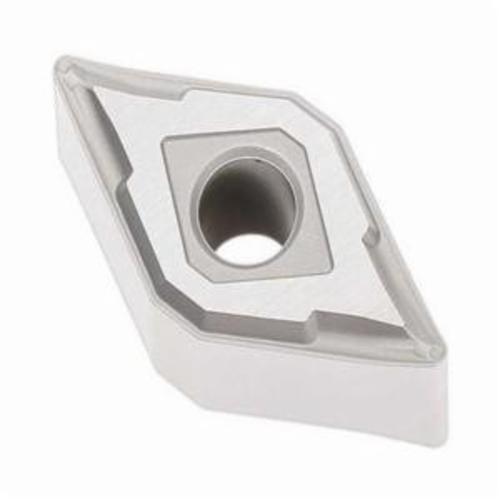

Seco Tools SECOT-15064 is a turning insert designed for precision machining. This insert uses ANSI code DNMG431-MF2 TP2501, suitable for a variety of cutting tasks. It features a diamond shape for optimal cutting efficiency.

• Maximum depth of cut is five point twenty-five millimeters.
• Inscribed circle measures twelve point seven millimeters.
• Constructed from carbide with a CVD-TiCN+Al2O3 coating.

Product Highlights

This turning insert is ideal for medium and finishing applications, particularly effective on steel materials.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 02959822

Technical Specifications

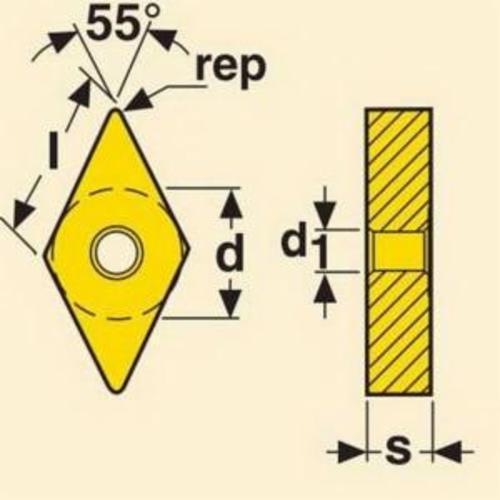

• ANSI Code: DNMG431-MF2 TP2501
• ISO Code: DNMG150404-MF2 TP2501
• Chipbreaker: MF2
• Corner Radius: 0.4 mm
• Hole Diameter: 5.15 mm
• Included Angle: 55 degrees
• Maximum Depth of Cut: 5.25 mm
• Thickness: 4.76 mm
• Material Grade: P
• Rake: Negative/Positive
• Cutting Direction: Neutral
• For Use On: Steel
