Seco SECOT-15028 Turning Insert ANSI Code DNMG431-MF2 TP1501

Product Description

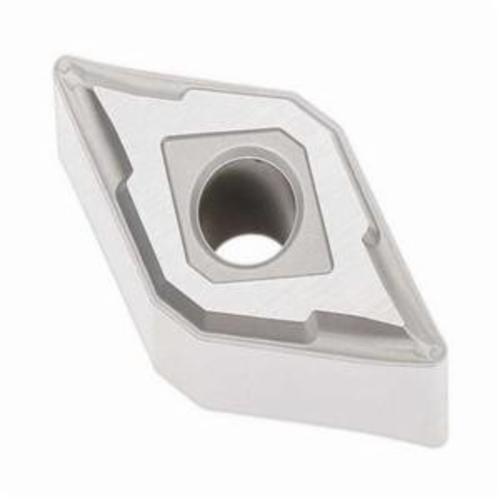

Seco Turning Insert with MPN SECOT-15028 is designed for precision machining. This DNMG insert is suitable for use on steel and comes in a diamond shape, offering versatility in machining applications.

• ANSI Code: DNMG431-MF2 TP1501
• Material Grade: P, suitable for medium to finishing applications
• Neutral cutting direction with both negative and positive rake

Product Highlights

This turning insert features a CVD-TiCN+Al2O3 coating for enhanced durability and performance. The design includes a 5.25 mm maximum depth of cut and a 12.7 mm inscribed circle, making it ideal for various machining tasks.

Product Information

Standard Information

• Brand: Seco
• Manufacturer Part Number: 02959803

Technical Specifications

• ANSI Code: DNMG431-MF2 TP1501
• ISO Code: DNMG150404-MF2 TP1501
• Maximum Depth of Cut: 5.25 mm

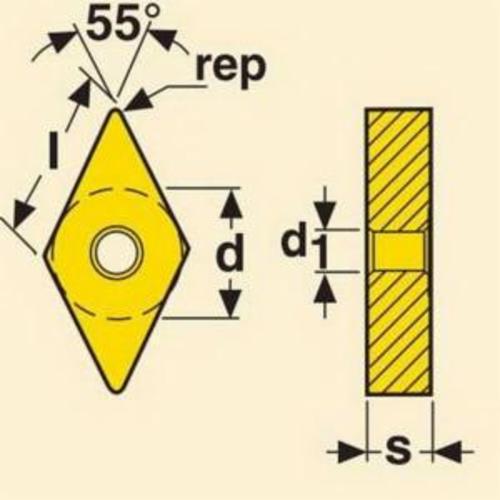

• Inscribed Circle: 12.7 mm
• Thickness: 4.76 mm
• Corner Radius: 0.4 mm
• Included Angle: 55 deg
• Relief Angle: 0 deg
• Material Grade: P
• Material: Carbide
• Shape: Diamond
• Seat Size: 15
• Cutting Direction: Neutral
• For Use On: Steel
