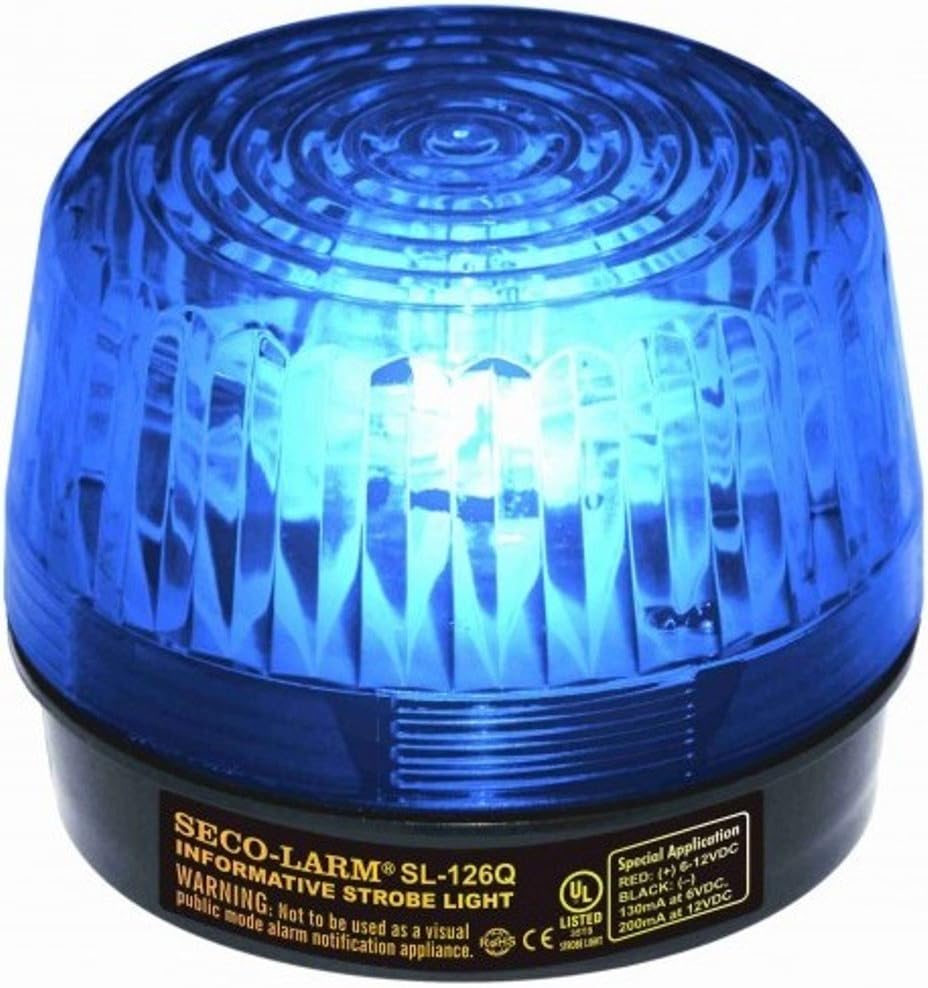

Seco-Larm SL-126Q/B Blue Strobe Light 6-12VDC

Product Description

The SECO-LARM SL-126Q/B blue strobe light is designed for general signaling requirements. It is suitable for 6- to 12-Volt use and features easy 2-wire installation. The circuit is protected against damage or current draw from incorrect polarity. The lens is made of high-impact resistant acrylic and the case is made of high-impact resistant ABS plastic.

• For 6- to 12-Volt use
• Incorrect polarity cannot damage circuit or draw current
• Easy 2-wire installation

Product Highlights

The SL-126Q/B strobe light provides visual signaling for security, alarm, or general applications. It offers a long operating lifespan and is effective for indoor and outdoor use.

Product Information

Standard Information

• Brand: SECO-LARM
• Manufacturer Part Number: SL-126Q/B

Technical Specifications

• Color: Blue
• Shape: Dome
• Voltage: 6 Volts
• Wattage: 12 watts
• Material: Acrylic
• Are Batteries Included: No
• Number of Light Sources: 1
• Operating voltage: 6~12 VDC
• Current draw (max.): 6VDC: 150mA 12VDC: 260mA
• Flash rate: 6VDC: Over 70/min 12VDC: Over 100/min
• Operating life (flashes): Over 2,000,000 flashes
• Operating life (hours): 6VDC: 550 12VDC: 370
• Electrical protection: Reverse polarity protected
• IP Rating: IP55 Weatherproof*
• Operating Temperature: -22°~140° F (-30°~60° C)
• Shade Material: Acrylic
• Power Source: Corded Electric
• Mounting Type: Table Mount
• Bulb Features: Reverse polarity protection
• Amperage: 200 Milliamps
• Set Name: Single Item
• Manufacturer: Seco-Larm
• Part Number: SL-126 BLUE STROBE LIGHT
• Item model number: SL-126Q/B
• Is Discontinued By Manufacturer: No
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Circuits: All solid-state
• Input Connections: Red/Positive, Black/Ground
• Leads: #18 Gauge, 12" long
• Illumination: 100,000 Candlepower
• Base: High-impact black ABS
• input current: 120mA±20% @ 6VDC 200mA±20% @ 12VDC
• Flash Rate: Over 60 per minute at 6 VDC Over 90 per minute at 12 VDC
• Lens: High-impact resistant acrylic
• Supply Voltage VDC: 12V
• Lens Diameter: 100mm
• IP / NEMA Rating: Not Rated
• External Height: 74mm
• Operating Temperature Max: 60°C
• Visual Signal Type: Strobe
• Product Range: SL-126 Series
• Power Requirement: 6-12VDC
• Consumption: Low current consumption
• Lifespan: Long operating lifespan of over 300 continuous hours - (2,000,000 flashes)

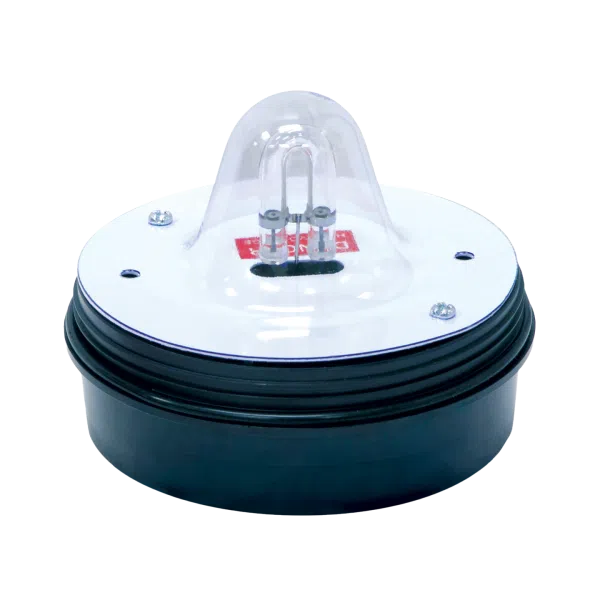

• Features: protective inner cover - protects the high-voltage zenon tube when lens removed
• Temperature: Use in temperature ranging from -22ºF (-30ºC) to 140ºF (60ºC)
• Current Drain: 200mA±20%@12VDC
• Part#: SL-126Q/B
• Finish Type: Blue
