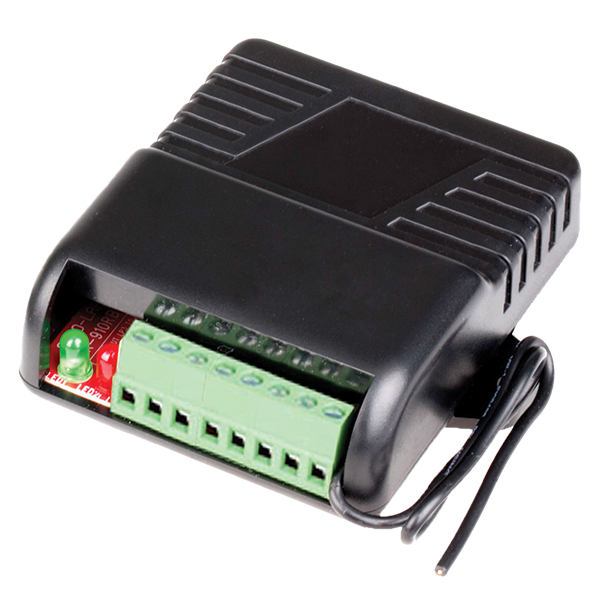

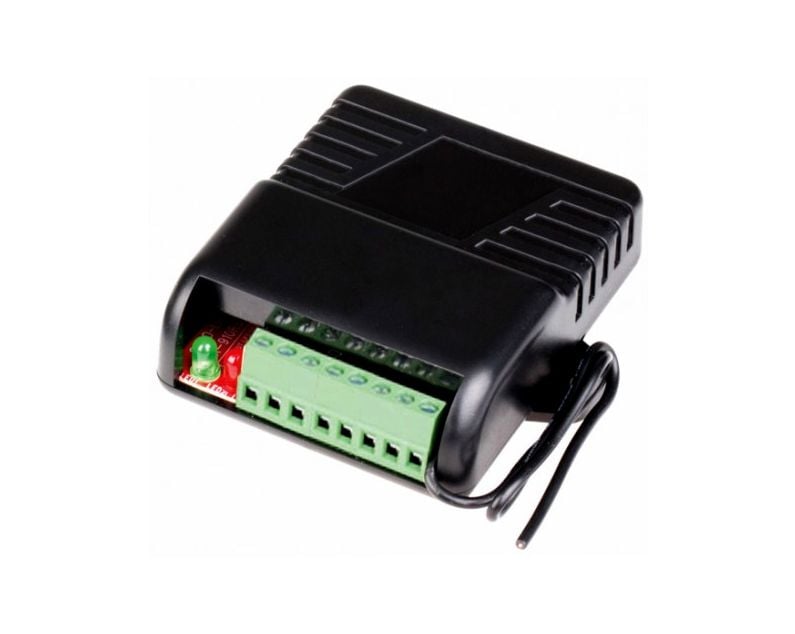

Seco-Larm SK-910RB2Q 2-Channel RF Receiver 11~24 VAC/DC 315MHz

Product Description

The Seco-Larm SK-910RB2Q series of wireless receivers meet the demand for independently-controlled output functions. Compatible with code hopping and fixed code transmitters, these RF receivers control home automation devices like garage doors, lights, and motorized gates. It features five programmable relay output modes and can learn up to 15 transmitter button codes.

• Operates on 11~24 VAC/VDC
• Range up to 500ft (150m)
• LED indicates RF reception, learn mode entered, transmitter learned, memory cleared, and relay output mode

Product Highlights

The SK-910RB2Q controls garage doors, gates, lights, and alarm panels via remote. It has pushbutton programming and is compatible with 315MHz SECO-LARM transmitters.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: SK-910RB2Q

Technical Specifications

• Type: WIRELESS – Two-Channel RF Receiver
• Operating voltage: 11~24 VAC/VDC
• Range: Up to 500′ (150m) with SECO-LARM transmitter. Range will vary.
• Relay Rating: Form C dry relay contact (NO/NC/COM); max 10 Amp at 24VDC per channel
• Current Draw: 8mA@12VDC (standby), 30mA/channel @12VDC (activated)
• Extended Range Antenna Compatible: Yes (SK-91ERSD)
• Connectors: 5 Quick-connect screw terminals (+, -, with NO/NC/COM)
• Frequency: 315 MHz
