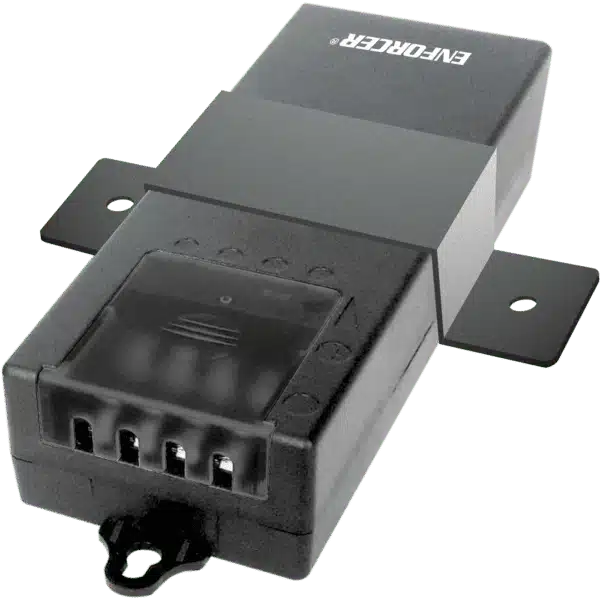

Seco-Larm PA-U0405-NULQ 4-Channel CCTV ‘Brick’ Power Supply 5 Amp

Product Description

The Seco-Larm PA-U0405-NULQ is a 4-channel 5-Amp power supply. Normally used in CCTV installations, it is suitable for a wide variety of both CCTV and access control applications. It features adjustable output voltage and built-in 6.8-Amp overcurrent protection.

• 4-Channel, 5-Amp power distribution
• Can be mounted with the bracket for easy access and reduced power cord clutter
• Universal input voltage: 100~240 VAC

Product Highlights

This power supply is designed for CCTV and access control applications, featuring adjustable output voltage and overcurrent protection.

Product Information

Standard Information

• Brand: Seco-Larm
• Manufacturer Part Number: PA-U0405-NULQ

Technical Specifications

• Input Voltage: 100~240VAC
• Max. Output power: 60W
• Output Voltage: 12~13.8 VDC, adjustable
• Number of Outputs: 4
• Total Supply Current: 5 Amp
• Input fuse: 3.15A@250VAC
• Overcurrent Protection: 12VDC / 6.8A
• Operating Temperature: 14º~113º F (-10º~45º C)
• Manufacturer: Seco-Larm
• Output Type: DC
• Output Protection: Fuse
• Fire Alarm Interface: No
• Battery Charging: No
• Certification: cUL
