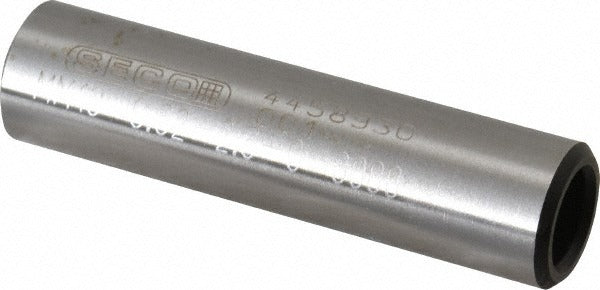

Seco 75005069 Replaceable Tip Milling Shank MM10 Minimaster

Product Description

The SECO 75005069 is a replaceable tip milling shank designed for use with the Minimaster MM10 toolholder system. It features a 5/8 inch straight shank with a Weldon flat and keyway configuration for secure, repeatable tool positioning in milling operations. The overall length measures 2.56 inches, with a neck diameter of 0.508 inches and a head length of 0.669 inches. This shank accepts MM10-style replaceable milling tips, allowing fast tip changes without removing the holder from the spindle. It is suited for CNC machining centers and manual mills where quick tip indexing and consistent projection are required.

This shank is intended for milling applications in job shop, production machining, and tool room environments. The Minimaster system is widely used for profiling, slotting, and general milling tasks on ferrous and non-ferrous materials. The 5/8 inch shank diameter fits standard collet chucks and milling machine spindles that accept that bore size. The Weldon flat provides positive drive and prevents pullout under cutting loads, making it a reliable choice for both light finishing passes and moderate material removal operations.

Key Features

• MM10 Minimaster toolholder style accepts interchangeable replaceable milling tips
• 5/8 inch straight shank with Weldon flat for positive anti-pullout drive
• Keyway shank configuration for repeatable angular positioning
• Neck diameter of 0.508 inches allows clearance in tight-pocket applications
• Overall length of 2.56 inches with effective cutting length of 0.669 inches
• Projection of 17.00 mm supports consistent tool setup and presetting

Compatibility

Designed for use with SECO Minimaster MM10-series replaceable milling tips. Fits machine spindles and collet chucks accepting a 5/8 inch straight shank bore.

Installation Notes

Installation is performed by machining professionals or setup technicians on CNC or manual milling equipment. Power down and lock out the machine before inserting or removing the shank from the spindle. Ensure the collet or chuck bore is clean and free of debris before seating the shank, and confirm the Weldon flat is properly aligned with the drive screw. Torque the collet or chuck per the machine manufacturer specifications before initiating any cutting operation.
